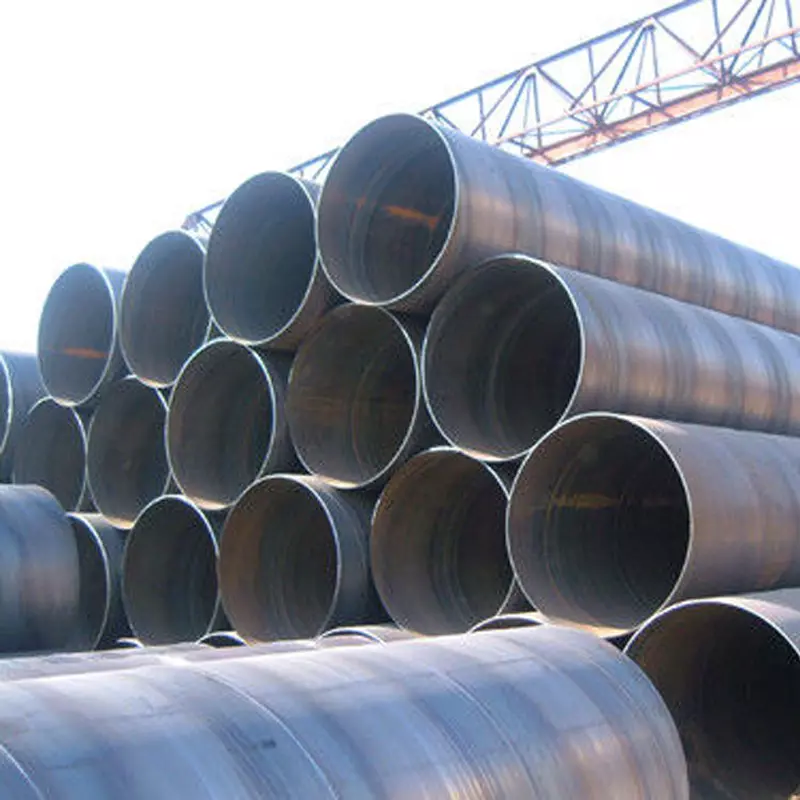

Large Diameter Carbon Steel SAW Welded Steel Pipe With Surbmerged Arc Welding

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	ASME/GB/EN/JIS/IS
Model Number:	24''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Bare pipe or with painting
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000tons per month

Product Name:	Carbon Steel Pipe	Connection:	Welded
Shape:	Round	Material:	A53 Grade B
Techniques:	Surbmerged Arc Welding	Wall Thickness:	SCH40
Standard:	ASME/GB/EN/JIS/IS	Size:	24''

Longitudinally welded seam large diameter carbon steel SAW pipe

COMPLETE PROJECT MANAGEMENT

In order to assure a smooth and on-time delivery, the "project" should be managed with utmost care and all external or unpredictable factors should be taken into consideration in advance.

Any sophisticated supply project essentially includes (but not limited to) "negotiations", "time scheduling","quality assurance", "delivery"…

However, as for a steel pipe supply project, some administrative and operational steps comes to the forefront, which naturally affects the project, such as specifying the most appropriate production and shipping plan, warehousing (if needed), organizing the inspection of the production and loading, coordinating the whole transportation process including inland hauling and handling customs clearance procedures, and tracking the transportation as well.

Sign Size	O.D. (mm)	Wall Thickness (mm)	Nominal weight (kg/m)	Test Pressure (Mpa)
Sign Size	O.D. (mm)	Wall Thickness (mm)	Nominal weight (kg/m)	L245	L290	L320	L360	L390	L415	L450	L285	L555
20	508	6.4	79.17	3.7	6.6	7.3	8.2	8.8	9.4	10.2	11.0	12.6
	508	7.1	87.71	4.1	7.3	8.1	9.1	9.8	10.4	11.3	12.2	14.0
	508	7.9	97.43	4.6	8.1	9.0	10.1	10.9	11.6	12.6	13.6	15.5
	508	8.7	107.13	5.0	8.9	9.9	11.1	12.0	12.8	13.9	15.0	17.1
	508	10.3	126.42	6.0	10.6	11.7	13.1	14.2	15.1	16.4	17.7	20.3
22	559	7.1	96.64	3.7	6.6	7.3	8.2	8.9	9.5	10.3	11.1	12.7
	559	7.9	107.37	4.2	7.4	8.1	9.2	9.9	10.6	11.4	12.3	14.1
	559	8.7	118.07	4.6	8.1	9.0	10.1	10.9	11.6	12.6	13.6	15.5
	559	10.3	139.38	5.4	9.6	10.6	11.9	12.9	13.8	14.9	16.1	18.4
24	610	7.1	105.57	3.5	6.1	6.7	7.5	8.2	8.7	9.4	10.2	11.6
	610	7.9	117.30	3.8	6.8	7.5	8.4	9.1	9.7	10.5	11.3	12.9
	610	8.7	129.01	4.2	7.4	8.2	9.2	10.0	10.7	11.6	12.5	14.2
	610	10.3	152.33	4.9	8.8	9.8	11.0	11.9	12.6	13.7	14.8	16.9
26	660	7.1	114.32	3.2	5.6	6.2	7.0	7.6	8.0	8.7	9.4	10.7
	660	7.9	127.05	3.5	6.2	6.9	7.8	8.4	8.9	9.7	10.4	12.0
	660	8.7	139.74	3.90	6.9	7.6	8.5	9.3	9.8	10.7	11.5	13.2
	660	10.3	165.03	4.6	8.1	9.0	10.1	11.0	11.7	12.6	13.6	15.6
28	711	7.9	136.98	3.3	5.8	6.4	7.2	7.8	8.3	9.0	9.7	11.1
	711	8.7	150.68	3.6	6.4	7.0	7.9	8.6	9.1	9.9	10.7	12.2
	711	9.5	164.35	3.9	7.0	7.7	8.7	9.4	10.0	10.8	11.7	13.3
	711	10.3	177.99	4.3	7.6	8.3	9.4	10.2	10.8	11.7	12.6	14.5
30	762	7.9	146.92	3.0	5.4	6.0	6.7	7.3	7.7	8.4	9.1	11.1
	762	8.7	161.62	3.4	6.0	6.6	7.4	8.0	8.5	9.2	10.0	11.4
	762	9.5	176.30	3.7	6.5	7.2	8.1	8.8	9.3	10.1	10.9	12.5
	762	10.3	190.94	4.0	7.1	7.8	8.8	9.5	10.1	10.9	11.8	13.5
32	813	7.9	156.85	2.9	5.1	5.6	6.3	6.8	7.3	7.9	8.5	9.7
	813	8.7	172.57	3.1	5.6	6.2	6.9	7.5	8.0	8.7	9.3	10.7
	813	10.3	203.90	3.7	6.6	7.3	8.2	8.9	9.5	10.3	11.1	12.7
	813	12.7	250.65	4.6	8.2	9.0	10.1	11.0	11.7	12.7	13.6	15.6
36	914	8.7	194.24	2.8	5.0	5.5	6.2	6.7	7.1	7.7	8.3	9.5
	914	9.5	211.91	3.1	5.4	6.0	6.7	7.3	7.8	8.4	9.1	10.7
	914	10.3	229.55	3.3	5.9	6.5	7.3	7.9	8.4	9.1	9.8	11.3
	914	12.7	282.29	4.1	7.3	8.0	9.0	9.8	10.4	11.3	12.1	13.9
40	1016	9.5	235.81	2.7	4.9	5.4	6.1	6.6	7.0	7.6	8.2	9.3
	1016	12.7	314.23	3.7	6.5	7.2	8.1	8.8	9.3	10.1	10.9	12.5
	1016	14.3	353.26	4.1	7.3	8.1	9.1	9.9	10.5	11.4	12.3	14.1
	1016	17.5	430.90	5.0	9.0	9.8	11.1	12.0	12.8	13.9	15.0	17.1
44	1118	9.5	259.70	2.5	4.4	4.9	5.5	6.0	6.3	6.9	7.4	8.5
	1118	10.3	281.37	2.7	4.8	5.3	6.0	6.5	6.9	7.5	8.0	9.2
	1118	12.7	346.18	3.3	5.9	6.5	7.4	8.0	8.5	9.2	9.9	11.3
	1118	14.3	389.23	3.8	6.7	7.4	8.3	9.0	9.6	10.4	11.2	12.8
	1118	20.6	557.47	5.3	9.6	10.5	11.9	12.8	13.7	14.9	16.0	18.3
48	1219	10.3	307.03	2.5	4.4	4.9	5.5	5.9	6.3	6.8	7.4	8.4
	1219	12.7	377.81	3.1	5.4	6.0	6.8	7.3	7.8	8.4	9.1	10.4
	1219	14.3	424.85	3.4	6.1	6.8	7.6	8.2	8.8	9.5	10.2	11.7
	1219	20.6	608.75	4.8	8.8	9.6	10.9	11.7	12.6	13.6	14.7	16.8
52	1321	10.3	332.94	2.3	4.1	4.5	5.1	5.5	5.8	6.3	6.8	7.8
	1321	12.7	409.76	2.8	5.0	5.5	6.2	6.7	7.2	7.8	8.4	9.6
	1321	14.3	460.82	3.2	5.7	6.2	7.0	7.6	8.1	8.8	9.5	10.8
	1321	22.2	711.30	4.9	8.8	9.6	10.9	11.7	12.5	13.6	14.6	16.7
56	1422	10.3	358.59 441.39 496.44	2.1	3.8	4.2	4.7	5.1	5.4	5.9	6.3	7.2
	1422	12.7		2.6	4.7	5.1	5.8	6.3	6.7	7.2	7.8	8.9
	1422	14.3		3.0	5.2	5.8	6.5	7.1	7.5	8.1	8.8	10.0
	1422	22.2		4.5	8.1	8.9	10.1	10.8	11.6	12.6	13.6	15.5
60	1524	12.7	473.31	2.4	4.4	4.8	5.4	5.8	6.2	6.7	7.2	8.3
	1524	15.9	591.32	3.0	5.4	6.0	6.7	7.2	7.8	8.4	9.1	10.4
	1524	17.5	650.13	3.3	6.0	6.6	7.7	8.0	8.6	9.3	10.0	11.4
	1524	22.2	822.16	4.2	7.6	8.3	9.4	10.1	10.7	11.7	12.7	14.5
64	1626	12.7	505.26	2.3	4.1	4.5	5.0	5.4	5.8	6.3	6.8	7.8
	1626	15.9	603.31	2.8	5.1	5.6	6.3	6.8	7.3	7.9	8.5	9.7
	1626	17.5	694.15	3.1	5.6	6.1	7.0	7.5	8.0	8.7	9.4	10.7
	1626	22.2	878.0	3.9	7.1	7.8	8.0	9.5	10.2	11.0	11.9	13.6
