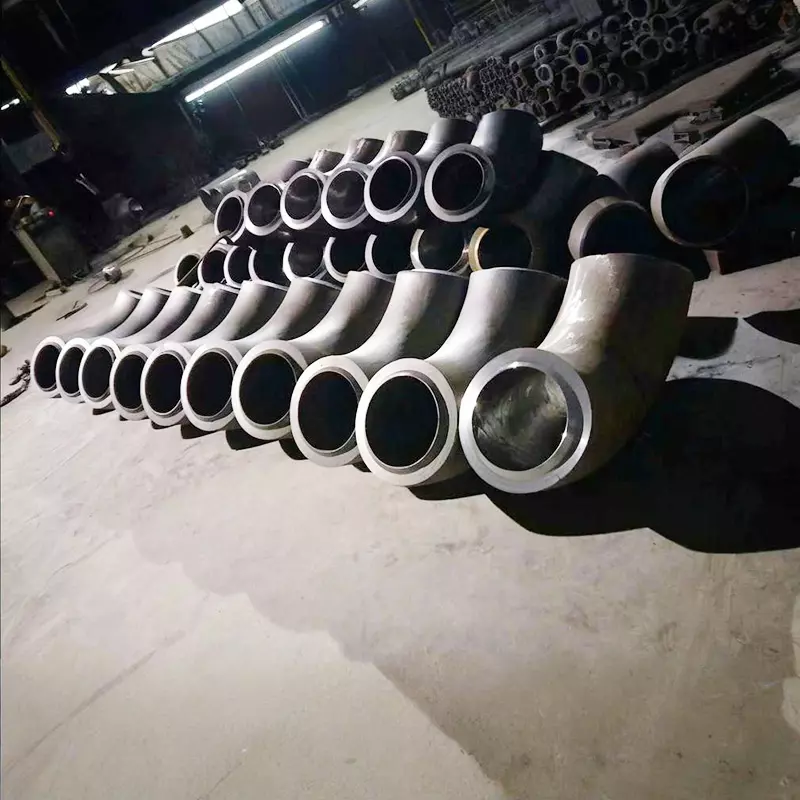

ASTMA420WPL6 low-temperature steel elbow

The new standard ASTM A420 WPL6 was promulgated in 2016 (new Standard A420), ASTM A420-2016
The main application of WPL6 is in low-temperature fluid transportation pipelines. The pipeline composition includes low-temperature steel pipes, low-temperature pipe fittings, and low-temperature flanges, etc. The material features are low carbon, increased manganese content, and the addition of trace alloy elements. The pipes connected to WPL6 are ASTM A333 GR.6. The actual operating materials in China include 18Mn, 16Mn4/1, 14Mn5V, 12Mn4V/1, 12Mn5V, etc
Jiangsu Gangyu Pipeline Equipment Co., Ltd. supplies ASME SA420/ASTM A420 WPL6 low-temperature butt-welded pipe fittings,WPL6 low-temperature forged pipe fittings, including WPL6 low-temperature elbows,WPL6 elbows,WPL6 low-temperature tees,WPL6 tees,WPL6 reducers,WPL6 reducers. WPL6 pipe caps,WPL6 caps and other WPL6 low-temperature pipe fittings
A420 WPL6 execution standard: ASME SA420/420M
Application of A420WPL6: Low-temperature pressure pipelines and low-temperature pressure vessels
A420 WPL6 pipe fitting standards: ANSI B16.9, ANSI B16.28, ANSI B16.11, MS SP95, MS SP79
Chemical composition of A420 WPL6: C≤ 0.3%, Si 0.15- 0.3%, Mn 0.6- 1.35%, P≤0.035, S≤ 0.04%, Ni≤ 0.4%, Cu≤ 0.3%
Gr≤ 0.3%, Mo≤ 0.12%, Nb≤ 0.02%, V≤ 0.05%
Mechanical properties of A420 WPL6: Yield strength ≥240MPA, tensile strength 415-585MPA, elongation ≥ 30%
Impact test of A420WPL6: Charpy impact energy ≥18J at -45°
Heat treatment for A420WPL6: Normalizing, normalizing plus tempering, annealing or quenching plus tempering.
Our company's available products include: WPL6 elbows, WPL6 tees, WPL6 reducers, WPL6 forged pipe fittings, WPL6 plate pipe fittings, etc
Our company guarantees the quality of the products and they meet the requirements of the -45° C low-temperature impact test. They are widely used in power, chemical, petrochemical and other units.
