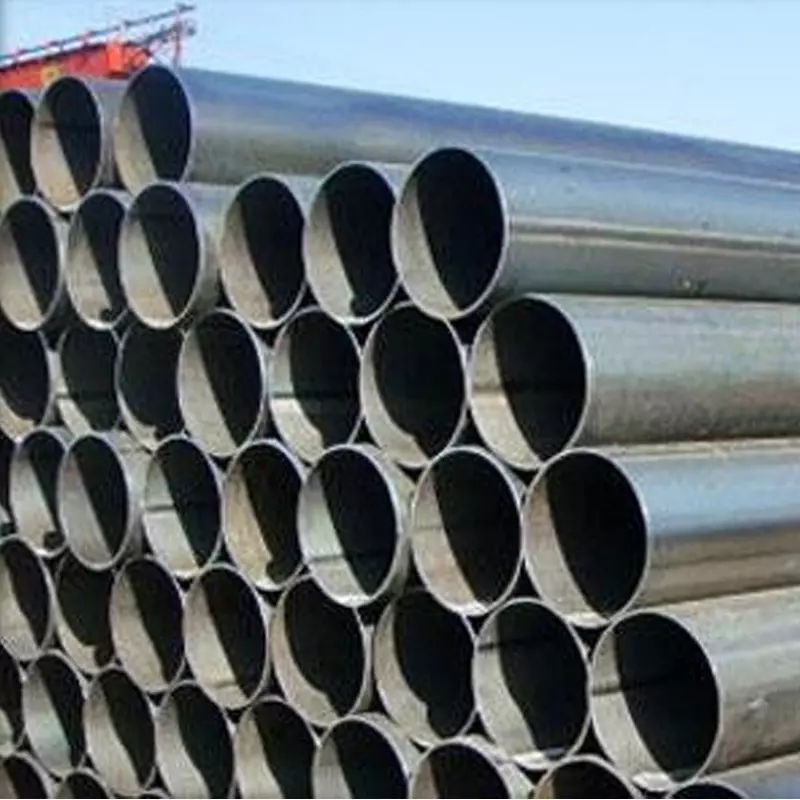

Building carbon steel pipe ERW Steel Pipe ASME SA53 grade B STD thickness

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO
Model Number:	114.3

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000tons per month

Product Name:	Building Pipe	Length:	6m Or 12m
Shape:	Round	Material:	A53 Gr B
Techniques:	ERW	Wall Thickness:	STD
Standard:	ASME/GB/EN/JIS/IS	Size:	114.3

building pipe carbon steel ERW ASME SA53 grade B STD thickness

Specification:

Outer Diameter	1/2" to 28" ( 20-711mm )
Wall thickness	2.0-16mm
Length	Max 16 meters
Standard	GB ,ANSI ,ASME ,ASTM ,JIS ,DIN, BS,EN
Steel Grade	ASTM A 106 GRB/A53 GRB/ASTM A500 GRA B C/ Q345/Q235/Q195
Packaging	plastic cap in bundle or in bulk or seaworthy packing or as per customers' requirement
Applications	Petroleum ,power ,gas metallurgy ,papermaking ,chemical ,medical equipment ,avaiation ,boilerheat ,exchanger ,shipbuilding ,construction ,etc
Ends	plain ends , bevelled , grooved or threaded with socket and plastic caps
Surface	Bared / black painted / galvanized
Technical	high - frequency welded

Specifications

Type		seamless steel and welded pipe
Product Description		Caron & Low Alloy
Advantaged Product Specification
Size range			Chinese
Outside Diameter (Inch)	Wall thickness (Inch)		Outside Diameter (mm)	Wall thickness (mm)
From 1/2 to 5	From SCH40 to XXS		From 25 to 356	From4 to 80
Length	From 2m to 12.5m in accordance with customers' requirements
Material & Standard Description	Chisese		American	German
	10#		ASTM A53-A	St37 DIN1626
			ASTM A106-A	St37-2 DIN17175
			ASTM A179-C	St35.8 DIN17175
			ASTM A192	St35.8 DIN17175
	20#		ASTM A53-B	St42-2 DIN1626
			ASTM A106-B	St45-8 DIN17175
			ASTM A178-C	St45-4 DIN1629
	45#		ASTM A1045	CK45
	16Mn		ASTM A210-C	St52 DIN1629
	37Mn5		J55
	27SiMn
	CrMo		ASTM 4135,4150	CrMo4 DIN17212
	40Cr		ASTM 5140	41Cr4

Test:

1. The test specimens and the tests required by this specification shall conform to those described in the latest issue of Test Methods and Definitions A 370.
2. The longitudinal tension test specimen shall be taken from the end of the pipe or, for continuous-welded pipe, it shall be permissible to be taken from the skelp, ata point approximately 90° from the weld, and shall not be flattened between gage marks. The sides of each specimen shall be parallel between gage marks. If desired, the tension tests are permitted to be made on the full section of pipe. When impracticable to pull a test specimen in full section,
the standard 2-in. [50-mm] gage length tension test speci-men shown in Fig. A2.3 of Test Methods and Definitions
A 370 is acceptable.
3. Transverse weld test specimens from electric-resistance-welded pipe shall be taken with the weld at the center of the specimen. All transverse test specimens shall be approximately 1 1⁄2in. [40 mm] wide in the gage length and shall represent the full wall thickness of the pipe from which the specimen was cut.
4. Test specimens for the bend and flattening tests shall be taken from pipe. Test specimens for the flattening test shall be smooth on the ends and free from burrs.
5. All specimens shall be tested at room temperature.
