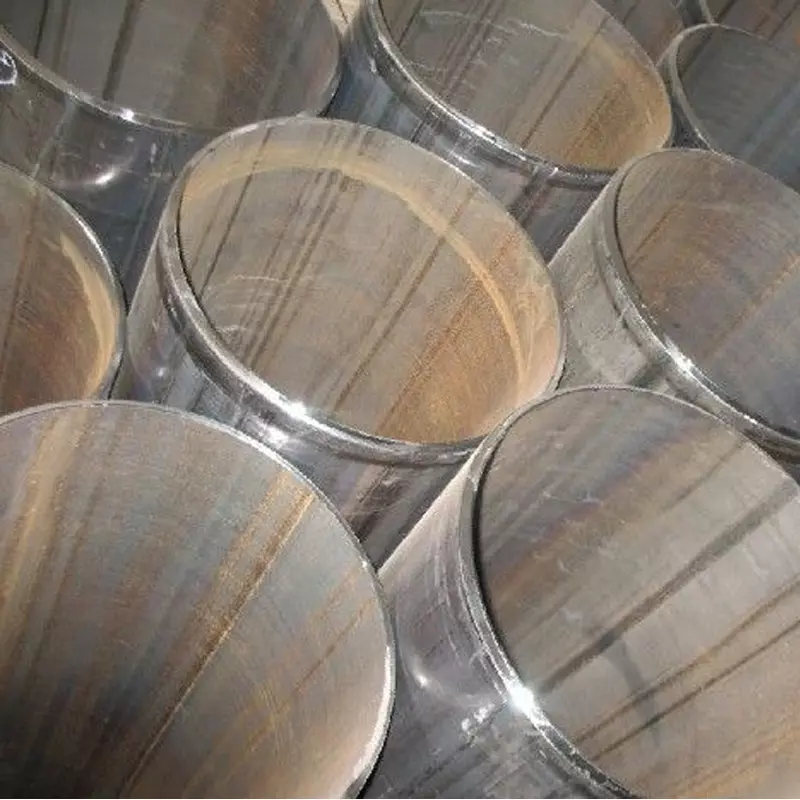

mild steel bare pipe ERW with bevelled ends and welding bead removed
Specification:
| Description |
diameter 108mm 610mm erw steel pipe |
| Standards |
ASTM A516,A572,A283,A285,A299, EN10025, DIN17100,
17102, JISG3101,G3106, GB/T700
|
| Material |
Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL,
08F, 10F, 10, HG5, DF08 SPHC, M8
|
| ASTM A 53: Gr. A, Gr B, Gr C, Gr.D |
| API 5L: A, B, X42, X46, X52, X56, X60, X65 X70,X100 etc |
|
GB/T9711: L175, L210, L245, L290, L320, L360, L290,
L320, L360, L390, L415, L450, L485, L555,etc
|
| ASTM A252: Gr.1 Gr.2 Gr.3 etc |
| Technical |
Spiral Welded, ERW (Electrical Resistance Weld),
EFW (Electric Fusion Welding)
|
| Outside Diameter |
6mm-2500mm (1/8"~98.4") |
| Thickness |
1mm~220mm (SCH5 ~XXS) |
| Length |
1m,6m,5.8m,or as required |
| Outside Coating |
Anti-rust oil, black painting. |
| Epoxy Coating according to AWWA C-210 |
| Bitumen Coating according to DIN30672, BS534 |
| Coal- Tar Enamel Coating according to AWWA C-203 |
| 3 Layer polyethylene Coating according to DIN30670 |
| 3 Layer Polypropylene Coating according to DIN30678 |
| galvanized |
| Inside Coating |
Epoxy lining according to AWWA C-210 |
| Bitumen Lining according to DIN30673, BS534 |
| Coal-Tar Enamel Lining according to AWWA C-203 |
| Cement Mortar Lining according to AWWA C-205, BS534 |
| Price Term |
EX-Work,FOB,CFR,CNF,CIF,DDU |
| Package |
Wooden box, bundled for export standard or as required |
| Payment Term |
T/T, L/C, WU |
| Delivery Time |
According to customer' s quantity. |
| Application |
a) General service industries (petroleum, food, chemical,
paper, fertilizer, fabric, aviation and nuclear)
b) Fluid, gas and oil transport
c) Pressure and heat transmission
d) Construction and ornament
e) Boiler heat exchangers
|
Test:
1. The test specimens and the tests required by this specification shall conform to those described in the latest issue of Test Methods and Definitions A 370.
2. The longitudinal tension test specimen shall be taken from the end of the pipe or, for continuous-welded pipe, it shall be permissible to be taken from the skelp, ata point approximately 90° from the weld, and shall not be flattened between gage marks. The sides of each specimen shall be parallel between gage marks. If desired, the tension tests are permitted to be made on the full section of pipe. When impracticable to pull a test specimen in full section,
the standard 2-in. [50-mm] gage length tension test speci-men shown in Fig. A2.3 of Test Methods and Definitions
A 370 is acceptable.
3. Transverse weld test specimens from electric-resistance-welded pipe shall be taken with the weld at the center of the specimen. All transverse test specimens shall be approximately 1 1⁄2in. [40 mm] wide in the gage length and shall represent the full wall thickness of the pipe from which the specimen was cut.
4. Test specimens for the bend and flattening tests shall be taken from pipe. Test specimens for the flattening test shall be smooth on the ends and free from burrs.
5. All specimens shall be tested at room temperature.
FAQ
Q: What is MOQ?
A: Minimum Order Quantity 5 tons.
Q: How to get quotation?
A: When we receive your detailed enquiry, we will set the best price based on standard,
steel grade, outer diameter, wall thickness, quantity, country.
And we will send quotation to your mailbox.
Q: What is necessary informations?
A: In order to get accurate quotation, the standard, material, outer diameter, wall thickness,
quantity, destination port are necessary informations.
Q: When is the earliest delivery date?
A: If these steel pipes are in stock, the delivery time is 7 days.
The longest delivery time is 30 days to order.
Q: What is payment terms?
A: FOB 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T BEFORE SHIPMENT
CIF and CFR 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T AGAINST THE COPY OF B/L OR L/C AT SIGHT
Q: What is shipment terms?
A: 1. Container vessels 2. Bulk carriers 3. Train
Q: What is loading capacity of container?
A: 20GP size: Length: 5800mm Width: 2350mm Height: 2392mm
Maxinum loading weight: 25 tons
40GP size: Length: 12000mm Width: 2350mm Height: 2392mm
Maxinum loading weight: 26 tons
40HQ size: Length: 12000mm Width: 2350mm Height: 2697mm
Maxinum loading weight: 26 tons
Q: What is packing type?
A: Bundled with knitted plastic bag, wooden cases or Ply-wooden Case /Iron Case/ Bundle with plastic Cap
or as per customers' requirement.
