Seamless API Steel Pipe API 5L X46 PSL1 24'' sch40 painted carbon steel

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	API / BV / SGS / ISO
Model Number:	24''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	API Steel Pipe	Ends Type:	Beveled Ends
Shape:	Round	Material:	API 5L X46
Techniques:	Hot Rolled	Wall Thickness:	Sch40
Standard:	ASME/GB/EN/JIS/IS	Size:	24''

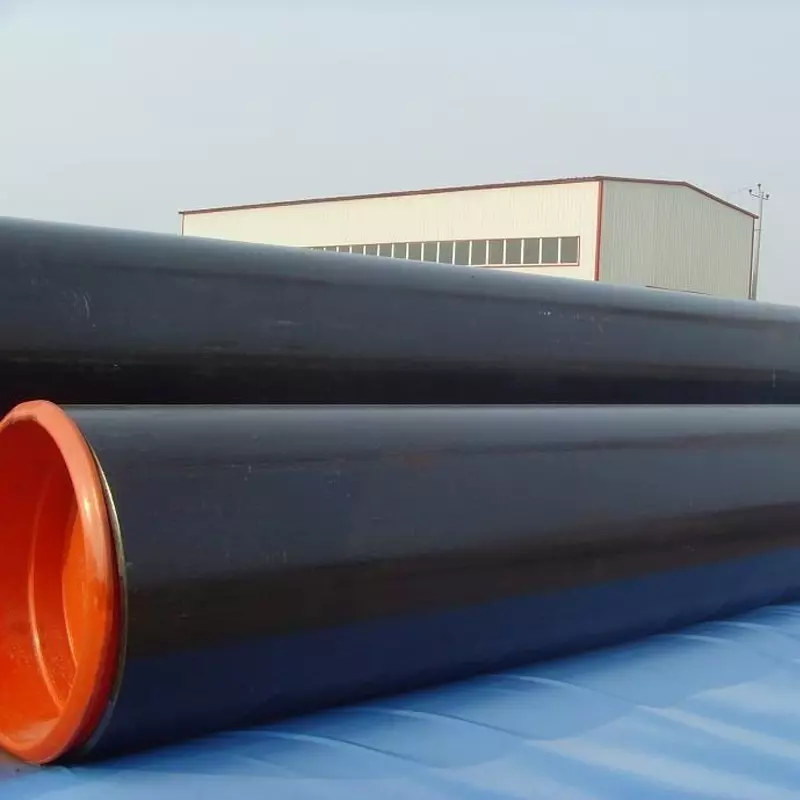

API 5L X46 PSL1 24'' sch40 painted carbon steel seamless pipe

Size	OD: 48-1200MM/ WT: 5.1-30MM
Material	X42, X46, X56, X60, X65 etc
Standard	API Spec 5L

Standard for production, grade & application

Standard	Grade	Application
API 5L (PSL1, PSL2) 01-SAMSS-035, 01-SAMSS-022	A, B, X42, X46, X52, X56 X60, X65, X70, X80	transmission of petroleum & natural gas
ASTM A53/ ASTM SA53 ASTM A106/ ASTM SA106	A, B A, B, C	transmission of low-pressure water, coal gas, air, oil & steam
Triple Standards: API 5L/ ASTM A53/ ASTM A106	B	transmission of low-pressure water, coal, gas, air, oil & steam
DIN 1629	ST37.0, ST44.0, ST52.0	regular line pipe
JIS G3454	STPG370, STPG410	pressure pipe, 100kg/m2 (-10℃~350℃)
JIS G3455	STS370, STS410, STS480	high pressure pipe, 100-1000kg/m2 (-100kg/m2 (-10℃~350℃))
JIS G3456	STS370, STS410, STS480	high pressure pipe, 350℃~400℃
CAN/CSA Z245.1	172, 207, 241, 291, 317, 259, 414, 448, 483, 550	transmission of oil & natural gas

ANSI/ASME B36.10M,B36.19M

Norminal Pipe Size DN(in.)	Outside Diameter D	T Norminal Wall Thickness
Norminal Pipe Size DN(in.)	Outside Diameter D	sch5s	sch10s	sch10	sch20	sch30	sch40s	STD	sch40	sch60	sch80s	XS
1/8	10.3	---	1.24	---	---	---	1.73	1.73	1.73	---	2.41	2.41
1/4	13.7	---	1.65	---	---	---	2.24	2.24	2.24	---	3.02	3.02
3/8	17.1	---	1.65	---	---	---	2.31	2.31	2.31	---	3.2	3.2
1/2	21.3	1.65	2.11	---	---	---	2.77	2.77	2.77	---	3.73	3.73
3/4	26.7	1.65	2.11	---	---	---	2.87	2.87	2.87	---	3.91	3.91
1	33.4	1.65	2.77	---	---	---	3.38	3.38	3.38	---	4.55	4.55
1¼	42.2	1.65	2.77	---	---	---	3.56	3.56	3.56	---	4.85	4.85
1½	48.3	1.65	2.77	---	---	---	3.68	3.68	3.68	---	5.08	5.08
2	60.3	1.65	2.77	---	---	---	3.91	3.91	3.91	---	5.54	5.54
2½	73	2.11	3.05	---	---	---	5.16	5.16	5.16	---	7.01	7.01
3	88.9	2.11	3.05	---	---	---	5.49	5.49	5.49	---	7.62	7.62
3½	101.6	2.11	3.05	---	---	---	5.74	5.74	5.74	---	8.08	8.08
4	114.3	2.11	3.05	---	---	---	6.02	6.02	6.02	---	8.56	8.56
5	141.3	2.77	3.4	---	---	---	6.55	6.55	6.55	---	9.53	9.53
6	168.3	2.77	3.4	---	---	---	7.11	7.11	7.11	---	10.97	10.97
8	219.1	2.77	3.76	---	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7
10	273.1	3.4	4.19	---	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7
12	323.9	3.96	4.57	---	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7
14	355.6	3.96	4.78	6.35	7.92	9.53	---	9.53	11.13	15.09	---	12.7
16	406.4	4.19	4.78	6.35	7.92	9.53	---	9.53	12.7	16.66	---	12.7
18	457.2	4.19	4.78	6.35	7.92	11.13	---	9.53	14.27	19.05	---	12.7
20	508	4.78	5.54	6.35	9.53	12.7	---	9.53	15.09	20.62	---	12.7
22	558.8	4.78	5.54	6.35	9.53	12.7	---	9.53	---	22.23	---	12.7
24	609.6	5.54	6.35	6.35	9.53	14.27	---	9.53	17.48	24.61	---	12.7
26	660.4	---	---	7.92	12.7	---	---	9.53	---	---	---	12.7
28	711.2	---	---	7.92	12.7	15.88	---	9.53	---	---	---	12.7
30	762	6.35	7.92	7.92	12.7	15.88	---	9.53	---	---	---	12.7
32	812.8	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
34	863.6	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
36	914.4	---	---	7.92	12.7	15.88	19.05	9.53	19.05	---	---	12.7
38	965.2	---	---	---	---	---	---	9.53	---	---	---	12.7
40	1016	---	---	---	---	---	---	9.53	---	---	---	12.7
42	1066.8	---	---	---	---	---	---	9.53	---	---	---	12.7
44	1117.6	---	---	---	---	---	---	9.53	---	---	---	12.7
46	1168.4	---	---	---	---	---	---	9.53	---	---	---	12.7
48	1219.2	---	---	---	---	---	---	9.53	---	---	---	12.7
