ANSI / API 5L Petroleum Pipeline Carbon Steel Seamless Pipe With Hot Rolled

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	API / BV / SGS / ISO
Model Number:	20''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	API Seamless Pipe	Ends Type:	Beveled Ends
Shape:	Round	Material:	API 5L L450
Techniques:	Hot Rolled	Wall Thickness:	Sch40
Standard:	ASME/GB/EN/JIS/IS	Size:	20''

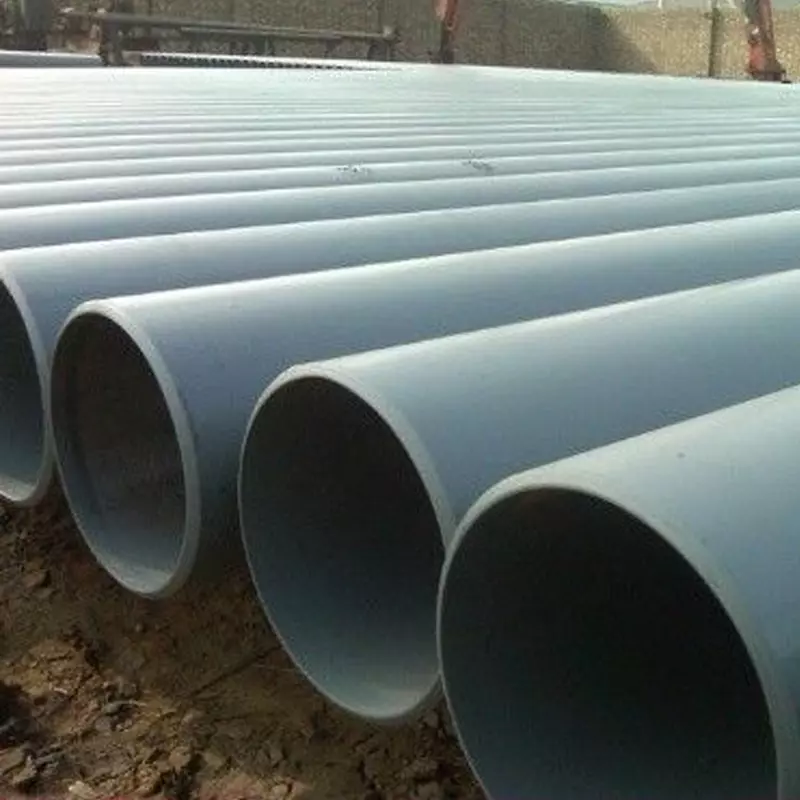

ANSI / API 5L petroleum pipeline carbon steel seamless pipe with coating

Line pipes produced by GY PIPELINE are intended for the transmission of petroleum, natural gas and other gas & fluids. Products include over a hundred specifications for the various applications in regular, pressure, submarine, low-temperature, high-temperature corrosion-resistant and other pipelines. GY PIPELINE can supply products according to international standards such as API 5L, ASTM, ASME, JIS, DIN, EN, etc. And it also can meet the customer’s special specification by mutually agreement.

Size	OD: 48-1200MM/ WT: 5.1-30MM
Material	X42, X46, X56, X60, X65 etc
Standard	API Spec 5L

Standard for production, grade & application

Standard	Grade	Application
API 5L (PSL1, PSL2) 01-SAMSS-035, 01-SAMSS-022	A, B, X42, X46, X52, X56 X60, X65, X70, X80	transmission of petroleum & natural gas
ASTM A53/ ASTM SA53 ASTM A106/ ASTM SA106	A, B A, B, C	transmission of low-pressure water, coal gas, air, oil & steam
Triple Standards: API 5L/ ASTM A53/ ASTM A106	B	transmission of low-pressure water, coal, gas, air, oil & steam
DIN 1629	ST37.0, ST44.0, ST52.0	regular line pipe
JIS G3454	STPG370, STPG410	pressure pipe, 100kg/m2 (-10℃~350℃)
JIS G3455	STS370, STS410, STS480	high pressure pipe, 100-1000kg/m2 (-100kg/m2 (-10℃~350℃))
JIS G3456	STS370, STS410, STS480	high pressure pipe, 350℃~400℃
CAN/CSA Z245.1	172, 207, 241, 291, 317, 259, 414, 448, 483, 550	transmission of oil & natural gas

ANSI/ASME B36.10M,B36.19M

Norminal Pipe Size DN(in.)	Outside Diameter D	T Norminal Wall Thickness
Norminal Pipe Size DN(in.)	Outside Diameter D	sch5s	sch10s	sch10	sch20	sch30	sch40s	STD	sch40	sch60	sch80s	XS
1/8	10.3	---	1.24	---	---	---	1.73	1.73	1.73	---	2.41	2.41
1/4	13.7	---	1.65	---	---	---	2.24	2.24	2.24	---	3.02	3.02
3/8	17.1	---	1.65	---	---	---	2.31	2.31	2.31	---	3.2	3.2
1/2	21.3	1.65	2.11	---	---	---	2.77	2.77	2.77	---	3.73	3.73
3/4	26.7	1.65	2.11	---	---	---	2.87	2.87	2.87	---	3.91	3.91
1	33.4	1.65	2.77	---	---	---	3.38	3.38	3.38	---	4.55	4.55
1¼	42.2	1.65	2.77	---	---	---	3.56	3.56	3.56	---	4.85	4.85
1½	48.3	1.65	2.77	---	---	---	3.68	3.68	3.68	---	5.08	5.08
2	60.3	1.65	2.77	---	---	---	3.91	3.91	3.91	---	5.54	5.54
2½	73	2.11	3.05	---	---	---	5.16	5.16	5.16	---	7.01	7.01
3	88.9	2.11	3.05	---	---	---	5.49	5.49	5.49	---	7.62	7.62
3½	101.6	2.11	3.05	---	---	---	5.74	5.74	5.74	---	8.08	8.08
4	114.3	2.11	3.05	---	---	---	6.02	6.02	6.02	---	8.56	8.56
5	141.3	2.77	3.4	---	---	---	6.55	6.55	6.55	---	9.53	9.53
6	168.3	2.77	3.4	---	---	---	7.11	7.11	7.11	---	10.97	10.97
8	219.1	2.77	3.76	---	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7
10	273.1	3.4	4.19	---	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7
12	323.9	3.96	4.57	---	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7
14	355.6	3.96	4.78	6.35	7.92	9.53	---	9.53	11.13	15.09	---	12.7
16	406.4	4.19	4.78	6.35	7.92	9.53	---	9.53	12.7	16.66	---	12.7
18	457.2	4.19	4.78	6.35	7.92	11.13	---	9.53	14.27	19.05	---	12.7
20	508	4.78	5.54	6.35	9.53	12.7	---	9.53	15.09	20.62	---	12.7
22	558.8	4.78	5.54	6.35	9.53	12.7	---	9.53	---	22.23	---	12.7
24	609.6	5.54	6.35	6.35	9.53	14.27	---	9.53	17.48	24.61	---	12.7
26	660.4	---	---	7.92	12.7	---	---	9.53	---	---	---	12.7
28	711.2	---	---	7.92	12.7	15.88	---	9.53	---	---	---	12.7
30	762	6.35	7.92	7.92	12.7	15.88	---	9.53	---	---	---	12.7
32	812.8	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
34	863.6	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
36	914.4	---	---	7.92	12.7	15.88	19.05	9.53	19.05	---	---	12.7
38	965.2	---	---	---	---	---	---	9.53	---	---	---	12.7
40	1016	---	---	---	---	---	---	9.53	---	---	---	12.7
42	1066.8	---	---	---	---	---	---	9.53	---	---	---	12.7
44	1117.6	---	---	---	---	---	---	9.53	---	---	---	12.7
46	1168.4	---	---	---	---	---	---	9.53	---	---	---	12.7
48	1219.2	---	---	---	---	---	---	9.53	---	---	---	12.7
