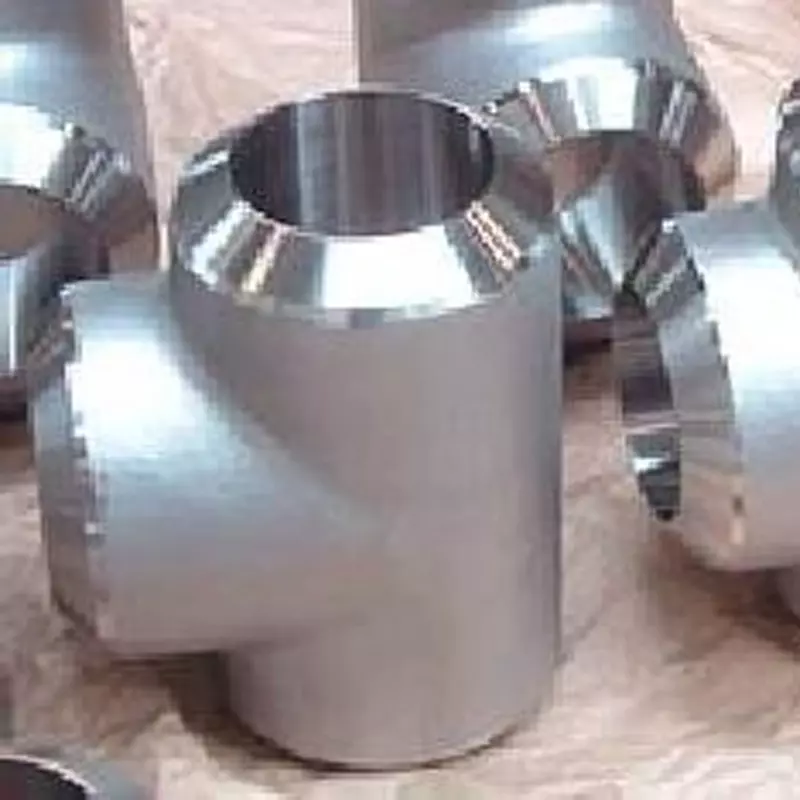

DIN / BS / JIS / GB , EN 10253 carbon steel tee,Thick wall tee

MOQ: 100 Pieces

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	API/BV/SGS/ISO/PED
Model Number:	OD 219

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Packed in wooden pallet
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, L/C, Western Union, Western Union
Supply Ability:	50,000pcs per mont

Product Name:	Carbon Steel Thick wall Tee	Connection:	Butt Welding
Shape:	Equal Tee	Material:	P235
Standard:	ASME/GB/EN/JIS/IS	Wall Thickness:	60
Size:	OD 219.0	Type:	Seamless

EN 10253 carbon steel tee , DIN / BS / JIS / GB tee pipe fitting

size	Seamless:1/2"-24"
size	Welded: 20" -72"
Type	Equal tee, Reduced Tee, Lateral Tee
thickness	SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160,XXS
standard	ASME B16.9,MSS SP-75
material	Carbon steel (ASTM A234 WPB,A234 WPC,A420 WPL6, ect)
	Stainless steel (ASTM A403 WP304,304L,316,316L,321,ect)
	Alloy steel (ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91, ect)
	Pipeline steel(MSS SP75/A860 WPHY42,46,52,56,60,65,70)
qualification	ISO,API,CE/PED to euro,etc
equipment	Φ1524 pipe bender3000T oil press Φ530 elbow air impact machine fully automatic welding machine 16mx5.2mx4.5m gas heat treatment furnace,etc
testing	magentic particle inspection site direct reading super living inspection high temperature tensile test Low-temperature impact test,etc
packing	in wooded cases or pallets,or as for clients'requirements

Quality assurance system:

1. Passed SGS international certification.

2. International ERP production management system, providing secondary manual quality inspection to ensure 100% of product qualification

3. Annual production capacity of 20,000 tons of pipe fittings.

Inventory workshop of 4.7000 square meters, 200 employees

5.300 square meters sample room, independent research and development capacity, ODM to provide customized.

6. Simple cooperation, convenient service and fast logistics.

7.6 years export experience.Provide a complete set of services including painting, marking, packaging, trailer, customs clearance, port and shipping.


Nominal Diameter		Outside Diameter				Center to End
		D1		D2
DN	NPS					C	M
DN	NPS	Series A	Series B	Series A	Series B	C	M
15×15×15	1/2×1/2×1/2	21.3	18	21.3	18	25	25
15×15×10	1/2×1/2×3/8	21.3	18	17.3	14	25	25
15×15×8	1/2×1/2×1/4	21.3	18	13.7	10	25	25
20×20×20	3/4×3/4×3/4	26.9	25	26.9	25	29	29
20×20×15	3/4×3/4×1/2	26.9	25	21.3	18	29	29
20×20×10	3/4×3/4×3/8	26.9	25	17.3	14	29	29
25×25×25	1×1×1	33.7	32	33.7	32	38	38
25×25×20	1×1×3/4	33.7	32	26.9	25	38	38
25×25×15	1×1×1/2	33.7	32	21.3	18	38	38
32×32×32	1.1/4×1.1/4×1.1/4	42.4	38	42.4	38	48	48
32×32×25	1.1/4×1.1/4×1	42.4	38	33.7	32	48	48
32×32×20	1.1/4×1.1/4×3/4	42.4	38	26.9	25	48	48
32×32×15	1.1/4×1.1/4×1/2	42.4	38	21.3	18	48	48
40×40×40	1.1/2×1.1/2×1.1/2	48.3	45	48.3	45	57	57
40×40×32	1.1/2×1.1/2×1.1/4	48.3	45	42.4	38	57	57
40×40×25	1.1/2×1.1/2×1	48.3	45	33.7	32	57	57
40×40×20	1.1/2×1.1/2×3/4	48.3	45	26.9	25	57	57
40×40×15	1.1/2×1.1/2×1/2	48.3	45	21.3	18	57	57
50×50×50	2×2×2	60.3	57	60.3	57	64	64
50×50×40	2×2×1.1/2	60.3	57	48.3	45	64	60
50×50×32	2×2×1.1/4	60.3	57	42.4	38	64	57
50×50×25	2×2×1	60.3	57	33.7	32	64	51
50×50×20	2×2×3/4	60.3	57	26.9	25	64	44
65×65×65	2.1/2×2/1/2×2.1/2	73	76	73	76	76	76
65×65×50	2.1/2×2/1/2×2	73	76	60.3	57	76	70
65×65×40	2.1/2×2/1/2×1.1/2	73	76	48.3	45	76	67
65×65×32	2.1/2×2/1/2×1.1/4	73	76	42.4	38	76	64
65×65×25	2.1/2×2/1/2×1	73	76	33.7	32	76	57
80×80×80	3×3×3	88.9	89	88.9	89	86	86
80×80×65	3×3×2.1/2	88.9	89	73	76	86	83
80×80×50	3×3×2	88.9	89	60.3	57	86	76
80×80×40	3×3×1.1/2	88.9	89	48.3	45	86	73
80×80×32	3×3×1.1/4	88.9	89	42.4	38	86	70
90×90×90	3.1/2×3.1/2×3.1/2	101.6	-	101.6	-	95	95
90×90×80	3.1/2×3.1/2×3	101.6	-	88.9	89	95	92
90×90×65	3.1/2×3.1/2×2.1/2	101.6	-	73	76	95	89
90×90×50	3.1/2×3.1/2×2	101.6	-	60.3	57	95	83
90×90×40	3.1/2×3.1/2×1.1/2	101.6	-	48.3	45	95	79
100×100×100	4×4×4	114.3	108	114.3	108	105	105
100×100×90	4×4×3.1/2	114.3	108	101.6	-	105	102
100×100×80	4×4×3	114.3	108	88.9	89	105	98
100×100×65	4×4×2.1/2	114.3	108	73	76	105	95
100×100×50	4×4×2	114.3	108	60.3	57	105	89
100×100×40	4×4×1.1/2	114.3	108	48.3	45	105	86
125×125×125	5×5×5	141.3	133	141.3	133	124	124
125×125×100	5×5×4	141.3	133	114.3	108	124	117
125×125×90	5×5×3.1/2	141.3	-	101.6	-	124	114
125×125×80	5×5×3	141.3	133	88.9	89	124	111
125×125×65	5×5×2.1.2	141.3	133	73	76	124	108
125×125×50	5×5×2	141.3	133	60.3	57	124	105
150×150×150	6×6×6	168.3	159	168.3	159	143	143
150×150×125	6×6×5	168.3	159	141.3	133	143	137
150×150×100	6×6×4	168.3	159	114.3	108	143	130
150×150×90	6×6×3.1/2	1, 68.3	-	101.6	-	143	127
150×150×80	6×6×3	168.3	159	88.9	89	143	124
150×150×65	6×6×2.1/2	168.3	159	73	76	143	121
200×200×200	8×8×8	219.1	219	219.1	219	178	178
200×200×150	8×8×6	219.1	219	168.3	159	178	168
200×200×125	8×8×5	219.1	219	141.4	133	178	162
200×200×100	8×8×4	219.1	219	114.3	108	178	156
200×200×90	8×8×3.1/2	219.1	-	101.6	-	178	152
250×250×250	10×10×10	273	273	273	273	216	216
250×250×200	10×10×8	273	273	219.1	219	216	203
250×250×150	10×10×6	273	273	168.3	159	216	194
250×250×125	10×10×5	273	273	141.3	133	216	191
250×250×100	10×10×4	273	273	114.3	108	216	184
300×300×300	12×12×12	323.9	325	323.9	325	254	254
300×300×250	12×12×10	323.9	325	273	273	254	241
300×300×200	12×12×8	323.9	325	219.1	219	254	229
300×300×150	12×12×6	323.9	325	168.3	159	254	219
300×300×125	12×12×5	323.9	325	141.3	133	254	216
350×350×350	14×14×14	355.6	377	355.6	377	279	279
350×350×300	14×14×12	355.6	377	323.9	325	279	270
350×350×250	14×14×10	355.6	377	273	273	279	257
350×350×200	14×14×8	355.6	377	219.1	219	279	248
350×350×150	14×14×6	355.6	377	168.3	159	279	238

Production Process:

Material Selection: We primarily source raw materials from leading steel mills such as Baosteel, TPCO, Yanbao, Baotou Steel, Changbao, and Huarun. We select tubes with smooth internal/external surfaces, uniform wall thickness, and a preference for higher manganese content to ensure a superior final appearance.
Material Inspection: Incoming materials undergo dimensional checks and chemical composition analysis.
Warehousing: Approved materials are stored in inventory.
Cutting: Tubes are cut to length with sufficient machining allowance. Burrs and metal chips are removed.
Bending & Forming: Tubes are heated using medium-frequency induction heaters and formed via pushing with precision dies. Dies are re-polished every 48 hours of operation to maintain strict dimensional tolerances.
Heat Treatment: Stress relief annealing (tempering) is performed.
End Machining: Bevels are cut on 90-degree CNC lathes to an angle of 37.5° ± 0.25°. The land (flat edge at the end of the bevel) is sized according to the pipe diameter. The land ensures a flush fit for butt welding and prevents burn-through during the TIG root pass.
Visual Inspection: Surfaces are checked for defects like scratches, peeling, or pitting.
Chemical Analysis: Composition is verified using imported handheld spectrometers.
Dimensional Inspection: Checks include outside diameter, wall thickness, ovality, and straightness.
Mechanical Testing: Tests include flattening and flaring to validate performance.
Sandblasting: A fine grit is used to create a uniform surface finish without excessive pitting.
Painting: Surfaces are evenly coated using environmentally friendly spray equipment.
Marking: Legible black background with white lettering is applied using a marking machine.
Packaging: Products are packed in wooden cases or on pallets, secured with steel strapping, and wrapped in plastic film for weather and dust protection.
Shipping: Careful handling using forklifts and overhead cranes ensures secure and orderly loading for transport.

Quality Assurance & Company Profile:

Certifications: ISO 9001 Quality Management System, Environmental Management System, Occupational Health & Safety Assessment Series, AAA Credit Rating, and SGS International Certification.
Quality Control: An integrated international ERP system manages production, supplemented by a secondary manual quality inspection to guarantee a 100% pass rate.
Production Capacity: Annual output of 20,000 tons of pipe fittings.
Facilities & Workforce: 7,000 sqm storage warehouse and a team of 200 employees.
R&D & Customization: A 300 sqm sample room supports our in-house R&D and ODM/ custom manufacturing capabilities.
Service: We offer straightforward cooperation, responsive service, and efficient logistics.
Experience: A decade of expertise in international export.
