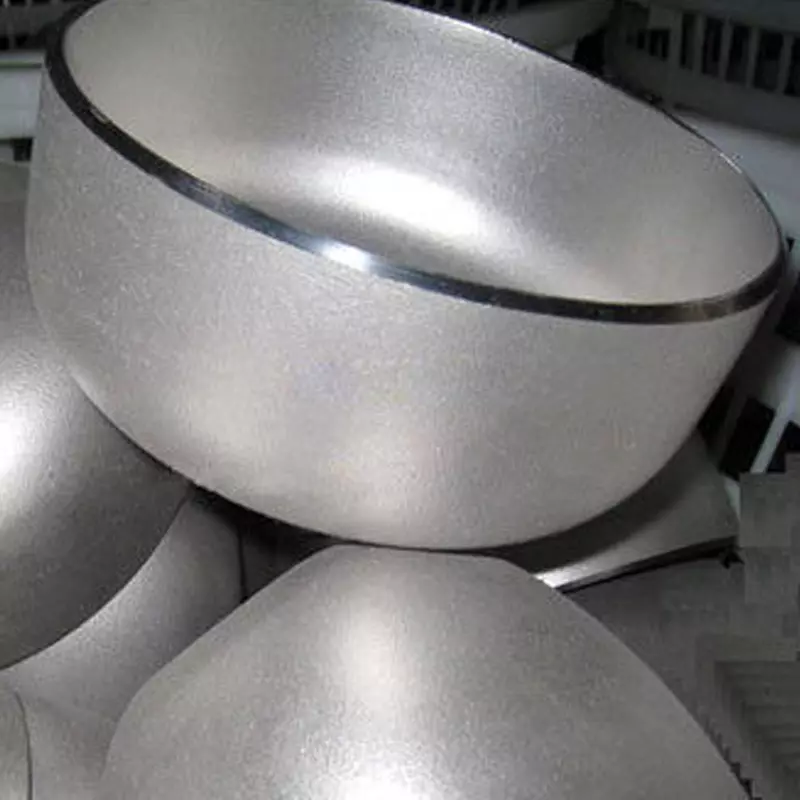

Seamless Stainless Steel Round Tube End Caps Beveled Sand Blast ASME B16.9
General Information
1. This specification covers wrought stainless steel fittings for pressure piping applications.
2. Several grades of austenitic stainless steel alloys are included in this specification Grades are designated with a prefix, WP or CR, based on the applicable ASME or MSS dimensional and rating standards, respectively.
3. For each of the WP stainless grades, several classes of fittings are covered, to indicate whether seamless or welded construction was utilized. Class designations are also utilized to indicate the nondestructive test method and extent of nondestructive examination (NDE). Table 1 is a general summary of the fitting classes applicable to all WP grades of stainless steel covered by this specification. There are no classes for the CR grades. Specific requirements are covered elsewhere.
4. This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable “M” specification designation (SI units), the material shall be furnished to inch-pound units.
Description:
2. Material: The material of this cap can be made in ASTM(WPB, WPC, WPL6, WPL3, WP1, WP12, WP11, WP5, WP9, WP304, WP304H, WP310, WP316, WP347, WP321H, WP347H), DIN, JIS
3. Size: The Out Diameter our cap shall be 1/2"-24"(DN15-1200), Thickness: 1.2mm-50mm
4. Standard: We can make the cap in diverse standard, including ASME/ANSI B16.9, GB/T 12459, BSEN 10253-4: 2008, SH3408-96, SH3409- 96
5. Application: The cap can be used in the fields as following: Dairy, Water, Food, Beer, Beverage, Pharmaceutical, Cosmetic and so on.
Specifications:
|
NPS
|
OD
|
E
|
max. WT at length E
|
E1
|
|
| |
|
1/2"
|
0.84
|
1.00
|
0.18
|
1.00
|
|
|
3/4"
|
1.05
|
1.00
|
0.15
|
1.00
|
|
|
1"
|
1.32
|
1.50
|
0.18
|
1.50
|
|
|
1 1/4"
|
1.66
|
1.50
|
0.19
|
1.50
|
|
|
1 1/2"
|
1.90
|
1.50
|
0.20
|
1.50
|
|
|
2"
|
2.38
|
1.50
|
0.22
|
1.75
|
|
|
2 1/2"
|
2.88
|
1.50
|
0.28
|
2.00
|
|
|
3"
|
3.50
|
1.50
|
0.30
|
2.50
|
|
|
3 1/2"
|
4.00
|
2.00
|
0.32
|
3.00
|
|
|
4"
|
4.50
|
2.50
|
0.34
|
3.00
|
|
|
5"
|
5.56
|
2.50
|
0.38
|
3.50
|
|
|
6"
|
6.62
|
3.00
|
0.43
|
4.00
|
|
|
8"
|
8.62
|
3.50
|
0.50
|
5.00
|
|
|
10"
|
10.75
|
4.00
|
0.50
|
6.00
|
|
|
12"
|
12.75
|
5.00
|
0.50
|
7.00
|
|
|
14"
|
14.00
|
6.00
|
0.50
|
7.50
|
|
|
16"
|
16.00
|
6.50
|
0.50
|
8.00
|
|
|
18"
|
18.00
|
7.00
|
0.50
|
9.00
|
|
|
20"
|
20.00
|
8.00
|
0.50
|
10.00
|
|
|
22"
|
22.00
|
9.00
|
0.50
|
10.00
|
|
|
24"
|
21.00
|
10.00
|
0.50
|
12.00
|
|
|
26"
|
26.00
|
10.50
|
-
|
AS PER CUSTOMER'S REQUIRE
|
|
|
28"
|
28.00
|
10.50
|
-
|
|
|
30"
|
30.00
|
10.50
|
-
|
|
|
32"
|
32.00
|
10.50
|
-
|
|
|
34"
|
34.00
|
10.50
|
-
|
|
|
36"
|
36.00
|
10.50
|
-
|
|
|
38"
|
38.00
|
10.50
|
-
|
|
|
40"
|
40.00
|
12.00
|
-
|
|
|
42"
|
42.00
|
12.00
|
-
|
|
|
44"
|
44.00
|
13.50
|
-
|
|
|
46"
|
46.00
|
13.50
|
-
|
|
|
48"
|
48.00
|
13.50
|
-
|
|
Advantage description:
carbon steel butt welding, seamless elbow, flange, tee, cross, pipe cap, seamless steel pipe, ERW pipe, spiral pipe, etc. Products are manufactured in accordance with GB 12459-2008, ASME / ANSI B16.9, DIN, JIS, ISO, etc. Products can also be manufactured under non-standard according to customers' request.
