S30408 Pressure Vessel Butt Welding Alloy Steel Pipe Caps ASTM B16.9

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO
Model Number:	5''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Packed in wooden pallet
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	stainless Steel Caps	Connection:	Butt Welding
Shape:	Round	Material:	S30408
Technics:	Hot Press	Wall Thickness:	SCH40
Stamdard:	ASME/GB/EN/JIS/IS	Size:	5''

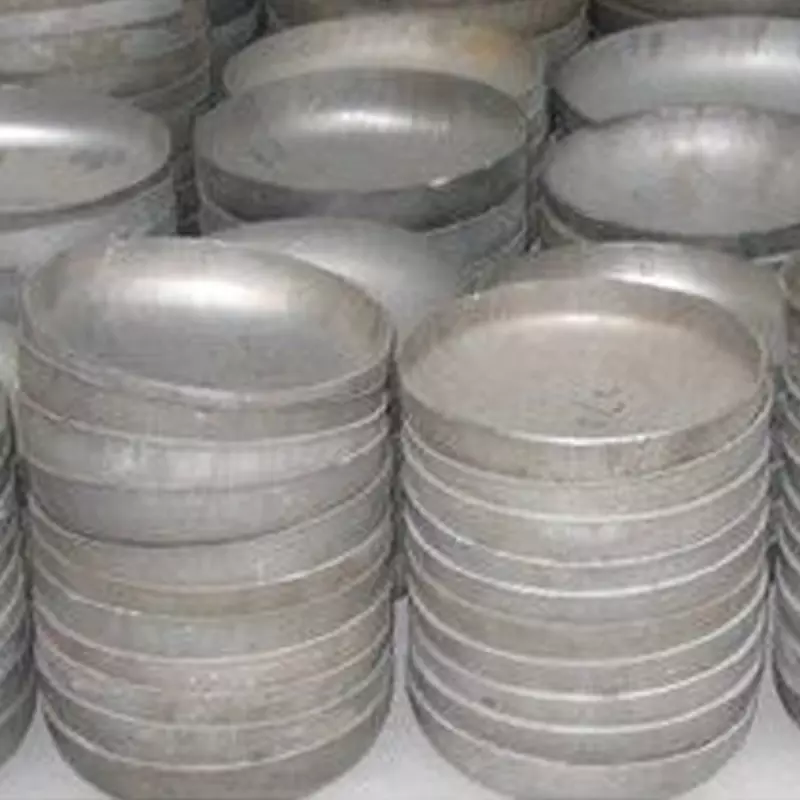

ASTM B16.9 S30408 pressure vessel alloy steel pipe caps

Pipe fittings caps

Standard	ANSI B16.9/B16.28 GOST 17379-2001 DIN 2617
Name	CAP
Material	Carbon steel :CT20,16Mn(09G2S), 16MnR, 20#, ASTM A234 WPB, A403 Stainless steel: SS304/304L/316/316L/321(12X18H10T)
Wall Thickness	SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40,STD, XS, SCH60, SCH80, SCH100, SCH120, SCH140, SCH160, XXS.
Size	1/2" ---48"
Surface	Painting, Rust-prevent oil, Galvanized
Packing	Ply- wooden case or Pallet

Productivity

1,118,000T/Y

1. anti-corrosion and high-temperature resistant with black painting
2. All special design available according to requirementS
3. The production process are made under the ISO9001:2000 strictly.

Description:

Specifications:

NPS	OD	E	max. WT at length E	E1
NPS	OD	E	max. WT at length E	E1
1/2"	0.84	1.00	0.18	1.00
3/4"	1.05	1.00	0.15	1.00
1"	1.32	1.50	0.18	1.50
1 1/4"	1.66	1.50	0.19	1.50
1 1/2"	1.90	1.50	0.20	1.50
2"	2.38	1.50	0.22	1.75
2 1/2"	2.88	1.50	0.28	2.00
3"	3.50	1.50	0.30	2.50
3 1/2"	4.00	2.00	0.32	3.00
4"	4.50	2.50	0.34	3.00
5"	5.56	2.50	0.38	3.50
6"	6.62	3.00	0.43	4.00
8"	8.62	3.50	0.50	5.00
10"	10.75	4.00	0.50	6.00
12"	12.75	5.00	0.50	7.00
14"	14.00	6.00	0.50	7.50
16"	16.00	6.50	0.50	8.00
18"	18.00	7.00	0.50	9.00
20"	20.00	8.00	0.50	10.00
22"	22.00	9.00	0.50	10.00
24"	21.00	10.00	0.50	12.00
26"	26.00	10.50	-	AS PER CUSTOMER'S REQUIRE
28"	28.00	10.50	-
30"	30.00	10.50	-
32"	32.00	10.50	-
34"	34.00	10.50	-
36"	36.00	10.50	-
38"	38.00	10.50	-
40"	40.00	12.00	-
42"	42.00	12.00	-
44"	44.00	13.50	-
46"	46.00	13.50	-
48"	48.00	13.50	-
