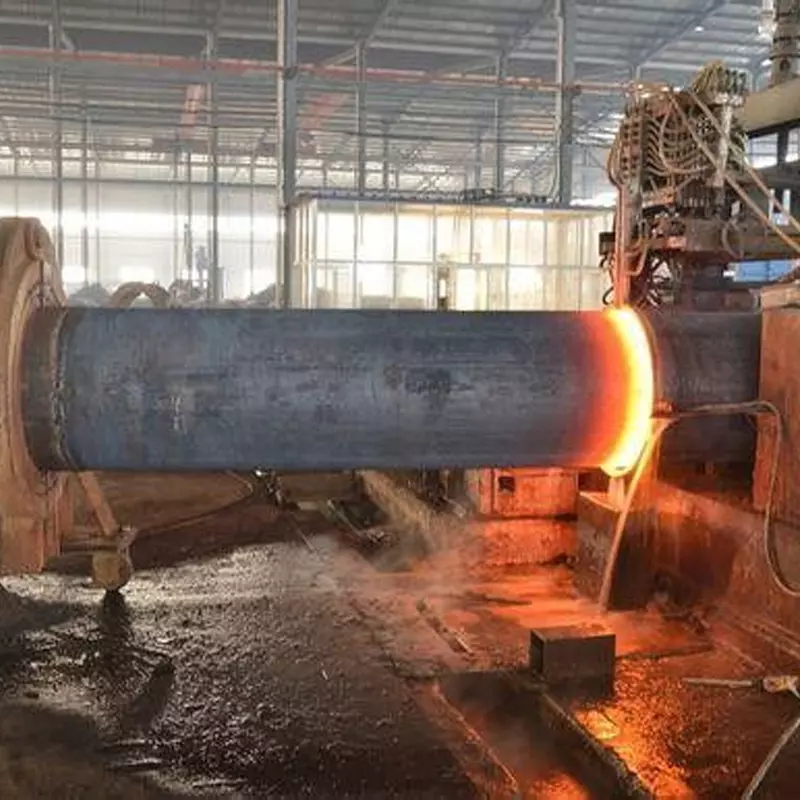

Medium Frequency Large Diameter Steel Tube Bends 45° WPB Material

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	MTC/COC/ISO
Model Number:	3D

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Packed in wooden pallet
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	Carbon Steel Bends	Connection:	Butt Welding
Shape:	Round	Material:	WPB
Degree:	45	Wall Thickness:	Sch40
Standard:	ASME/GB/EN/JIS/IS	Size:	508

Medium Frequency Large Diameter Steel Tube Bends 45° WPB Material

General:

ASME B16.9 Standard covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes NPS 1 ⁄ 2 through NPS 48 (DN 15 through DN 1200).

Description:

Type	30/45/90/180Degree (R=3D,5D,10D,,,)
Standard	API 6H, ANSI,MSS ,EN, DIN, JIS, BS, GB,others
Out Diameter	21.3mm - 1828.8mm
Wall Thickness	1.8 - 160mm
Steel Grade	A234WPB S275, S275JR, S355JRH, S355J2H WP304,WP304L,WP316,WP316L,WP321 A234 WP11,WP5,WP9,WP91,WP22,WP12,WB36, API 6H: GR B, X42, X46, X56, X60, X65, X70,X80,X100 Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface	Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate	EN 10204/3.1B
Usage	High&Medium pressure liquid delivery, such as water, gasand oil, oil drilling and machinery manufacturing, etc.

Advantage description:

carbon steel butt welding, seamless elbow, flange, tee, cross, pipe cap, seamless steel pipe, ERW pipe, spiral pipe, etc. Products are manufactured in accordance with GB 12459-2008, ASME / ANSI B16.9, DIN, JIS, ISO, etc. Products can also be manufactured under non-standard according to customers' request.
