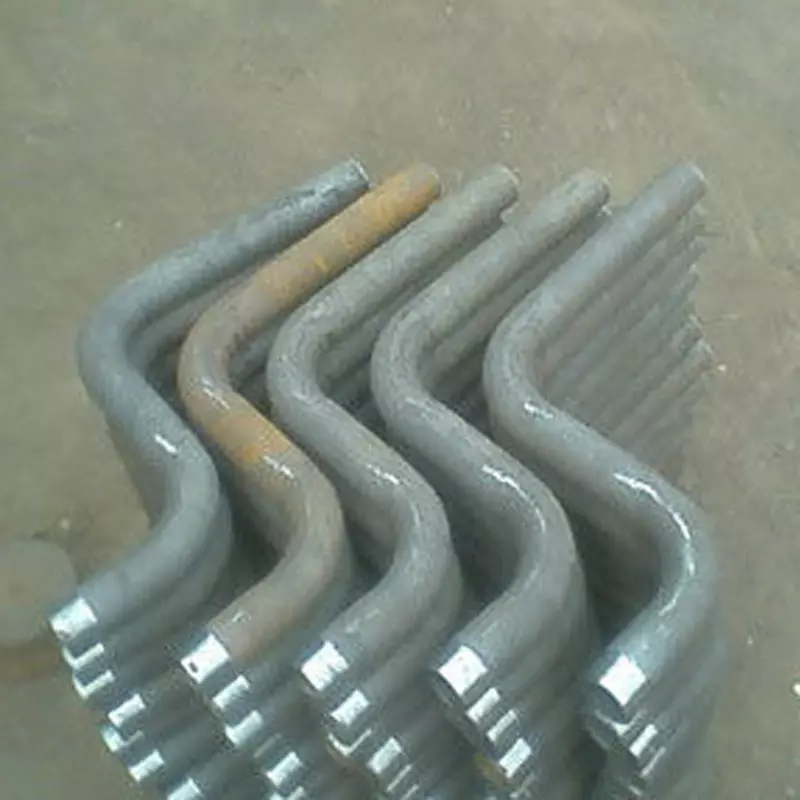

carbon steel customized small diameter tube bends for pressure sevice
A Pipe bend (hot induction bend) is a pipe fitting which is used to achieve a change in pipe direction or flow direction. The pipe bends usually have a bending radius more than 1.5 times pipe diameters. If this bending radius is less than 1.5R, it is called Elbow. 2.5D, 3D & 5D are the most popular bending radius in piping industry, commonly the degree is 90°or 45°.
GY pipeline also can manufacture the customized radius and customized degrees hot induction bend .
1.BENDING RADIUS (R): R=2.5D,3D,4D,5D,6D,7D,8D,9D,10D
2.BENDING ANGLE (θ): 15°, 30°,45°,60°,90°,135°,180°or any other degree as per request
3.STRAIGHT LENGTH (L): The straight pipe length(tangent length) with two ends general from 100mm-600mm, and also can produce the length according to the clients’ requirement.
4.SIZE (DN): DN15-DN1800, 1/2″-72″
5.WALL THICKNESS (T): T≤120mm
6.Technics: Hot forming,pushing,welded,forged
7.Certificate: API,CE,ABS,ISO,PED Certificate Approved
8. Standard: ASME/ANSI B16.9,ASME/ANSI B16.11,MSS SP-75,MSS SP-43,BS EN 10253,DIN2605,2609,2615,2616,2617,DIN28011,GOST 17375,17376,17378,17379,17380,30753,JIS B2311,JIS B2312,JIS B2313,JIST B2316,ISO 3419,ISO 5251
9.Material: Carbon steel,Stainless steel,Alloy steel:ASTM A105,A182 F5,F9,F11,F12,F22,A234 WPB,WP5,WP9,WP11,WP12,WP22,WP91,A403 WP304L,WP316L,WP321,ASTM S420 WPL6,ASTM A860 WPHY42,WPHY52,WPHY60,WPHY65,WPHY70,JIS G3454,BS EN10253,S235,S355,DIN ST37,ST52,GOST CT20.
Description:
|
Type
|
30/45/90/180Degree (R=3D,5D,10D,,,)
|
|
Standard
|
API 6H, ANSI,MSS ,EN, DIN, JIS, BS, GB,others
|
|
Out Diameter
|
21.3mm - 1828.8mm
|
|
Wall Thickness
|
1.8 - 160mm
|
|
Steel Grade
|
A234WPB
S275, S275JR, S355JRH, S355J2H
WP304,WP304L,WP316,WP316L,WP321
A234 WP11,WP5,WP9,WP91,WP22,WP12,WB36,
API 6H: GR B, X42, X46, X56, X60, X65, X70,X80,X100
Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
|
|
Surface
|
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
|
|
Test
|
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
|
|
Mill Test Certificate
|
EN 10204/3.1B
|
|
Usage
|
High&Medium pressure liquid delivery, such as water, gasand oil, oil drilling and machinery manufacturing, etc.
|
