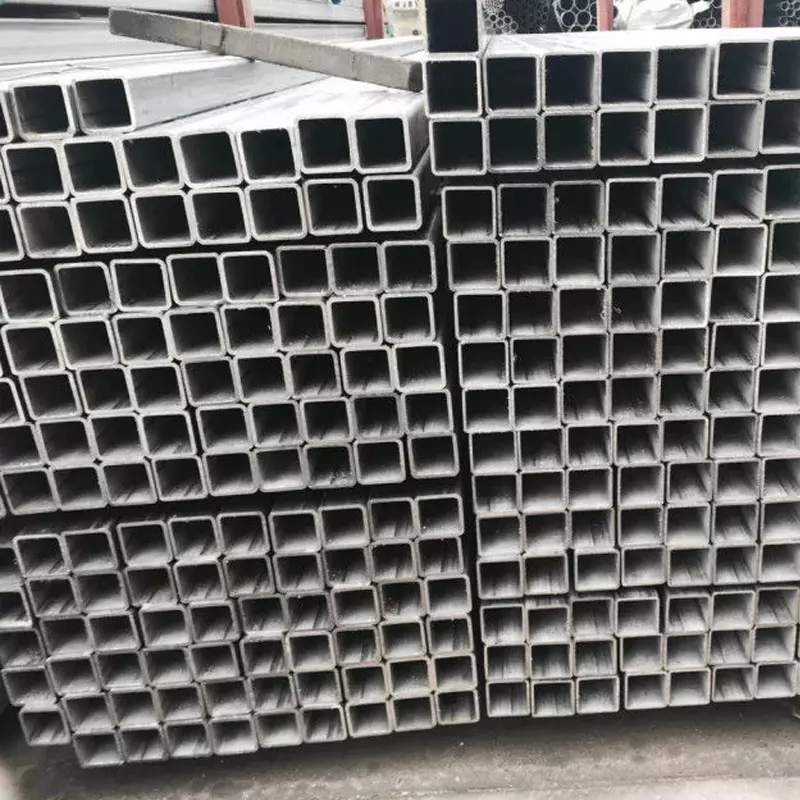

AISI 304L Square Metal Tubing , Annealed Surface Structural Steel Tubing

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	ASME/GB/EN/JIS/IS
Model Number:	30*30

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	Stainless Steel Pipe	Ends Type:	Plain Ends
Shape:	Square	Material:	304L
Surface:	Annealed	Wall Thickness:	2.0mm
Standard:	ASME/GB/EN/JIS/IS	Size:	30*30 Mm

AISI 304L square steel pipe welded stainless annealed boxing pipe

Scope of ASME A519

1 This specification covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing in sizes up to and including 12 3⁄4 in. (323.8 mm) outside diameter for round tubes with wall thicknesses as required.
2 The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.

Description	Black painted Q345 carbon steel square pipe with good quality
Supply Capacity	500 tons/week
Process Method	Hot Rolled
Out Diameter	6-630 mm
Thickness	0.4-30mm
Length	Specific length or random length
Steel Grade	ASTM A106 B , A53 B, API 5L B, 20#, 45# , 40Cr
Standards	ASTM / ASME, GB, DIN, JIS, T14975, etc.
Specification	O.D: 2"-38" (60.3-1000mm) W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. (0.5-40 mm) Or non-regular size to be tailored as required.
Packing	1.with plastic cap to protect both ends 2.plastic bag wrapped outside the pipe 3.bundles to be covered by polythene & strapped securely .
Certificate	ISO 9001:2008 , API 5L Grade B
Delivery time	with 7-10 days after receive 30% desipot or depend on Quantity
Payment Term	T/T, Irrevocable L/C at sight (30% desipot)
Trade Term	FOB , CFR , CIF

Chemical composition

Steel Grade
Grade	Chemical Composition
	C≤	Si≤	Mn≤	P≤	S≤	Ni	Cr
201	0.15	1.00	5.5-7.5	0.5	0.03	3.50-5.50	16.00-18.00
202	0.15	1.00	7.5-10.0	0.5	0.03	4.00-6.00	17.00-19.00
301	0.15	1.00	2.00	0.045	0.03	6.00-8.00	16.00-18.00
302	0.15	1.00	2.00	0.045	0.03	8.00-10.00	17.00-19.0
303	0.15	1.00	2.00	0.20	≥0.15	8.00-10.00	17.00-19.0
303Se	0.15	1.00	2.00	0.20	0.06	8.00-10.00	17.00-19.0
304	0.08	1.00	2 .00	0.045	0.03	8.00-11.00	18.00-20.00
304L	0.03	1.00	2 .00	0.045	0.03	8.00-12.00	18.00-20.00
309	0.2	1.00	2 .00	0.04	0.03	12.00-15.00	22.00-24.00
309S	0.08	1.00	2 .00	0.045	0.03	12.00-15.00	22.00-24.00
310	0.25	1.50	2 .00	0.04	0.03	19.00-22.00	24.00-26.00
310S	0.08	1.00	2 .00	0.045	0.03	19.00-22.00	24.00-26.00
316	0.08	1.00	2 .00	0.045	0.03	10.00-14.00	16.00-18.00
316L	0.03	1.00	2 .00	0.045	0.03	10.00-14.00	16.00-18.00
317	0.08	1.00	2.00	0.045	0.03	11.00-15.00	18.00-20.00
317L	0.03	0.75	2.00	0.045	0.03	11.00-15.00	18.00-20.00
316Ti	0.08	1.00	2 .00	0.045	0.03	10.00-14.00	16.00-18.00
2205	0.03	1.00	2 .00	0.03	0.02	4.50-6.50	22.00-23.00
630	0.07	1.00	1.00	0.04	0.03	3.00-5.00	15.00-17.00
631	0.09	1.00	1.00	0.04	0.03	6.50-7.70	16.00-18.00
632	0.09	1.00	1.00	0.04	0.03	6.50-7.70	14.00-16.00

Standard: ASTM A500 Gr.A/B ASTM A36 SS400

Prot	size	thickness	Prot	Size	thickness
SHS	20*20	1.3-2.5	RHS	20*30	1.3-2.75
	25*25	1.3-2.75		20*40	1.3-2.75
	30*30	1.3-2.75		25*40	1.3-2.75
	40*40	1.3-3.75		30*50	1.3-4.75
	50*50	1.3-5.75		30*60	1.3-4.75
	60*60	1.3-5.75		40*50	1.3-4.75
	70*70	1.3-5.75		40*80	1.3-4.75
	80*80	1.3-5.75		50*70	1.3-4.75
	90*90	1.3-5.75		50*80	1.3-4.75
	100*100	1.5-12		60*90	1.3-4.75
	120*120	2.5-12		50*100	1.3-5.75
	140*140	2.75-16		50*150	1.3-5.75
	150*150	2.75-16		60*160	1.3-5.75
	160*160	3.0-16		100*150	2.5-16
	180*180	3.0-16		100*200	2.5-16
	200*200	3.0-16		100*250	2.5-16
	250*250	4.75-16		150*300	4.5-16
	300*300	4.75-16		200*300	5.5-16
	400*400	4.75-16		200*400	5.5-16
	500*500	4.75-16		400*600	5.5-16
