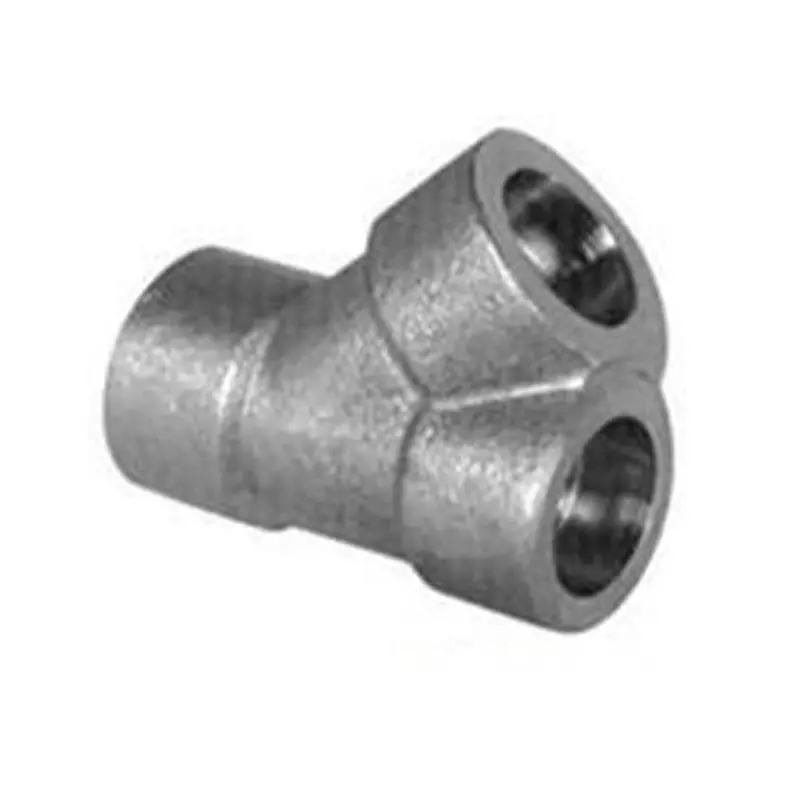

45 Degree Lateral Carbon Steel Socket Weld Fittings A105 Material
General information about ASME B16.11
1 Fitting Types/Configuration. Types of fittings covered by this Standard are shown in Table 6, by class and size range. Fittings shown in Tables 1 through 5 and Tables I-1 through I-5 may also be made with combi-nations of socket-welding and threaded ends.
2 Special Fittings. Fittings with special dimen-sions, threads, or count erbores may be made by agreement between the manufacturer and purchaser. When such fittings meet all other stipulations of this Standard, they shall be considered in compliance there-with, provided they are appropriately marked (see section 4).
3 The values stated in either metric or inch units are to be regarded separately as standard. Within the text, the inch units are shown in parentheses. The values stated in each system are not
exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
Material
Fittings shall be made of materials consisting of forg-ings, bar, seamless pipe, or seamless tubular products. These materials shall conform to the requirements for the WP seamless construction materials of ASTM Fitting Specifications A 234, A 403, A 420, A 815, or B 366 or ASTM Forging Specifications A 105, A 182, A 350, B 462, or B 564. Tees, elbows, and crosses shall not be made from bar stock.
Specifications:
|
Norminal Size
|
Depth of Socket
|
Dimension of Socket
|
Wall Thickness
|
Center to Bottom of Socke
|
|
| |
|
C
|
A
|
|
|
90°Elbow,Tee,Cross
|
45°Elbow
|
|
| |
|
DN
|
NPS
|
J
|
d1
|
3000LB Sch80
|
6000LB Sch160
|
9000LB XXS
|
3000
|
6000
|
9000
|
3000
|
6000
|
9000
|
|
|
Ave.
|
Min.
|
Ave.
|
Min.
|
Ave.
|
Min.
|
|
|
6
|
1/8"
|
10
|
11.15
|
3.2
|
3.2
|
3.95
|
3.45
|
|
|
12
|
12
|
|
9
|
9
|
|
|
|
10.65
|
10
|
10
|
|
7
|
7
|
|
|
|
8
|
1/4"
|
10
|
14.6
|
3.8
|
3.3
|
4.6
|
4
|
|
|
12
|
17
|
|
9
|
9
|
|
|
|
14.1
|
10
|
13
|
|
7
|
7
|
|
|
|
10
|
3/8"
|
10
|
18.05
|
4
|
3.5
|
5.05
|
4.35
|
|
|
15
|
17
|
|
9
|
13
|
|
|
|
17.55
|
12
|
14
|
|
6
|
10
|
|
|
|
15
|
1/2"
|
10
|
22.2
|
4.65
|
4.1
|
5.95
|
5.2
|
9.35
|
8.2
|
17
|
21
|
27
|
13
|
14
|
17
|
|
|
21.7
|
14
|
18
|
24
|
10
|
11
|
14
|
|
|
20
|
3/4"
|
13
|
27.55
|
4.9
|
4.25
|
6.95
|
6.05
|
9.8
|
8.55
|
21
|
24
|
30
|
14
|
16
|
21
|
|
|
27.05
|
18
|
21
|
27
|
11
|
13
|
17
|
|
|
25
|
1"
|
13
|
34.3
|
5.7
|
5
|
7.9
|
6.95
|
11.4
|
9.95
|
24
|
29
|
34
|
16
|
19
|
23
|
|
|
33.8
|
20
|
25
|
30
|
12
|
15
|
19
|
|
|
32
|
1 1/4"
|
13
|
43.05
|
6.05
|
5.3
|
7.9
|
6.95
|
12.15
|
106
|
29
|
34
|
37
|
19
|
23
|
24
|
|
|
42.55
|
25
|
30
|
33
|
15
|
19
|
20
|
|
|
40
|
1 1/2"
|
13
|
49.15
|
6.35
|
5.55
|
8.9
|
7.8
|
12.7
|
11.15
|
34
|
40
|
40
|
23
|
27
|
28
|
|
|
48.65
|
30
|
36
|
36
|
19
|
23
|
23
|
|
|
50
|
2"
|
16
|
61.6
|
6.95
|
6.05
|
10.9
|
9.5
|
13.85
|
12.15
|
40
|
43
|
56
|
27
|
31
|
31
|
|
|
61.1
|
36
|
39
|
52
|
23
|
27
|
26
|
|
|
65
|
2 1/2"
|
16
|
74.4
|
8.75
|
7.65
|
|
|
|
|
44
|
|
|
31
|
|
|
|
|
73.8
|
39
|
|
|
27
|
|
|
|
|
80
|
3"
|
16
|
90.4
|
9.5
|
8.3
|
|
|
|
|
60
|
|
|
34
|
|
|
|
|
89.3
|
55
|
|
|
29
|
|
|
|
|
100
|
4"
|
19
|
116.05
|
10.7
|
9.35
|
|
|
|
|
69
|
|
|
44
|
|
|
|
|
115.45
|
64
|
|
|
39
|
|
|
|
