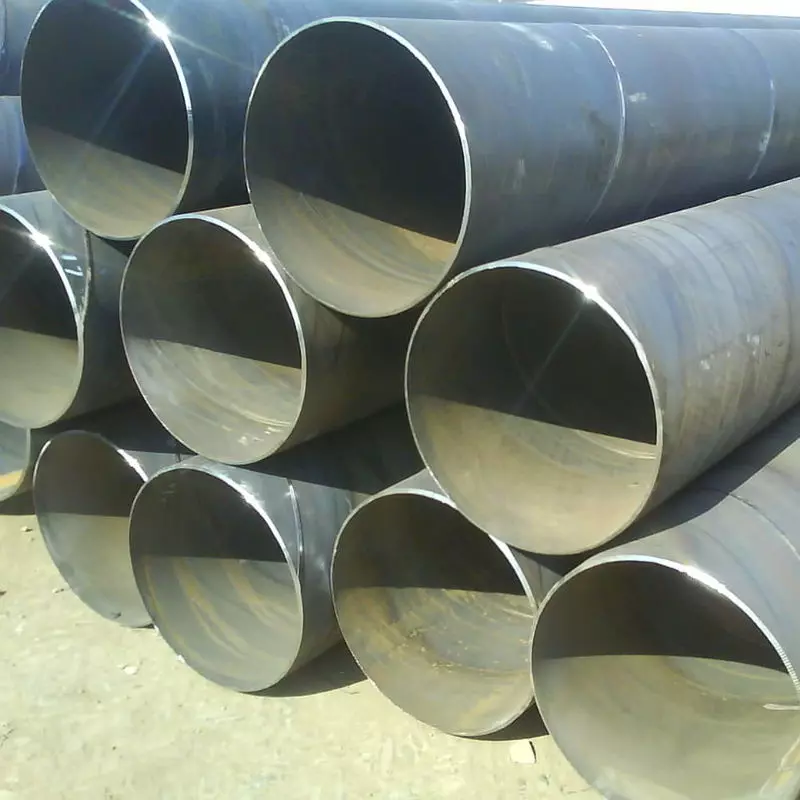

API 5L grade B length 12m carbon steel welded round water pipeine

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	ASME/GB/EN/JIS/IS
Model Number:	24''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Bare pipe or with painting
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000tons per month

Product Name:	API 5L	Connection:	Welded
Shape:	Round	Material:	Carbon Steel
Techniques:	Surbmerged Arc Welding	Wall Thickness:	SCH XS
Standard:	ASME/GB/EN/JIS/IS	Size:	24''

API 5L grade B length 12m carbon steel welded round water pipeine

INSPECTION TEST PLAN & QUALITY PLAN
Before starting the production, reaching to a multilateral agreement is required for a smooth production and loading. Therefore, each single details of the production and testing phases, from raw material inlet point to the loading to the transportation vehicles is negotiated by the parties. In no way, the production starts unless the all parties are fully satisfied with the stipulated inspection test plan. In the center of these negotiations, thanks to our experience in various projects and technical knowledge in the area of steel pipe technologies, we are so ready to puzzle over the whole plan and offer the most proper solutions.

1,Chemical composition in %

TYPE	Steel grade	C .	Si	Mn .	P	S
API 5L PSL1	B	≤0.28	-	≤1.20	≤0.03	≤0.03
API 5L PSL1	X42	≤0.28	-	≤1.3	≤0.03	≤0.03
API 5L PSL1	X46	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X52	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X56	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X60	≤0.28	-	≤1.4	≤0.03	≤0.03
API 5L PSL1	X70	≤0.28	-	≤1.4	≤0.03	≤0.03

Mechanical Properties

TYPE	Steel grade	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation
API 5L PSL1	B	≥415	≥245	As per API 5L
API 5L PSL1	X42	≥415	≥290	As per API 5L
API 5L PSL1	X46	≥435	≥320	As per API 5L
API 5L PSL1	X52	≥460	≥360	As per API 5L
API 5L PSL1	X56	≥490	≥390	As per API 5L
API 5L PSL1	X60	≥520	≥415	As per API 5L
API 5L PSL1	X70	≥565	≥483	As per API 5L

2,Chemical composition in %

Level	Steel grade	C .	Si	Mn .	P	S
PSL2	B	≤0.24	-	≤1.20	≤0.03	≤0.03
PSL2	X42	≤0.24	-	≤1.3	≤0.03	≤0.03
PSL2	X46	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X52	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X56	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X60	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X65	≤0.24	-	≤1.4	≤0.03	≤0.03
PSL2	X70	≤0.24	-	≤1.4	≤0.03	≤0.03

Mechanical Properties

Level	Steel grade	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation
PSL2	B	415-760	245-450	As per API 5L
PSL2	X42	415-760	290-495	As per API 5L
PSL2	X46	435-760	320-525	As per API 5L
PSL2	X52	460-760	360-530	As per API 5L
PSL2	X56	490-760	390-545	As per API 5L
PSL2	X60	520-760	415-565	As per API 5L
PSL2	X65	535-760	450-600	As per API 5L
PSL2	X70	565-758	483-621	As per API 5L
