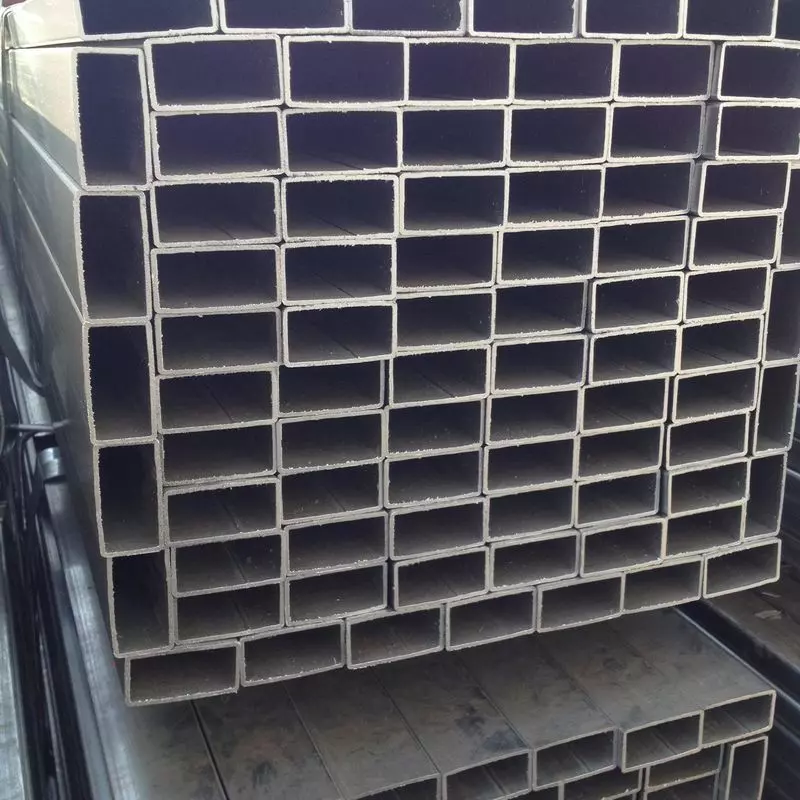

ERW ASTM A519 Carbon Steel Rectangular Tube Steel / Box Tube Steel

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	ASME/GB/EN/JIS/IS
Model Number:	50*100

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	Carbon Steel	Ends Type:	Plain Ends
Shape:	Rectangular	Material:	A53 GR.B
Surface:	Annealed	Wall Thickness:	3mm
Standard:	ASME/GB/EN/JIS/IS	Size:	50*100

galvanized ERW ASTM A519 carbon steel rectangular steel pipe

Scope of ASME A519
1 This specification covers both seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing in sizes up to and including 12 3⁄4 in. (323.8 mm) outside diameter for round tubes with wall thicknesses as required.
2 The tubes shall be furnished in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.

Steel Grade	GB	JIS		ATSM	DIN
Steel Grade	Grade	Grade	Standard NO.	Steel No.	Steel No.	Mmaterial No.	Standard NO.
Carbon steel pipe	Q235	GGP STPY41	G3452 G3457	(A53 F) A283-D	(St33)	1.0033	DIN1626
	10	STPG38	G3454	A135-A A53-A	(St37)	1.011	DIN1626
		STPG38	G3456	A106-A	St37-2	1.0112	DIN17175
		STS38	G3455		St35.8 St35.4	1.0305 1.0309	DIN1629/4
		STB30	G3461	A179-C A214-C	St35.8	1.0305	DIN17175
		STB33	G3461	A192 A226	St35.8	1.0305	DIN17175
		STB35	G3461		St35.8	1.0305	DIN17175
	20	STPG42	G3454	A315-B A53-B	(St42) St42-2	1.0130 1.0132	DIN1626
		STPT42	G3456	A106-B	St45-8	1.0405	DIN17175
		STB42	G3461	A106-B	St45-8	1.0405	DIN17175
		STS42	G3455	A178-C A210-A-1	St45-4	1.0309	DIN1629/4

Product Name	Carbon Steel Pipe
Material	Q235, 10#, 20#
Grade	STPG42, STPT42, STB42, STS42, A53, A106, A179, A192, DIN1626, DIN17175, DIN1629/4. etc
Standard	GB, ASTM, JIS, DIN, ASME, EN, ISO, API
OD (Outer Diameter)	21.3-1200mm
WT (Wall Thickness)	2.11-40mm
Length	Fixed length, random length, 1-12m Customized
Port Form	PE (Plain Ends), BE (Beveled Ends
Color	Black, Silver
Technology	Hot rolling, Cold rolling, Cold drawing, Extruded
Type	Straight seam, Seamless, Spiral Submerged Welded
Derusting method	Pickling; Abrasive blasting
Surface treatment	Polishing, Painting, Varnish, Oil, Galvanized
Applied range	Oil, Gas, Water, Boiler tube, Structure, Machinery
