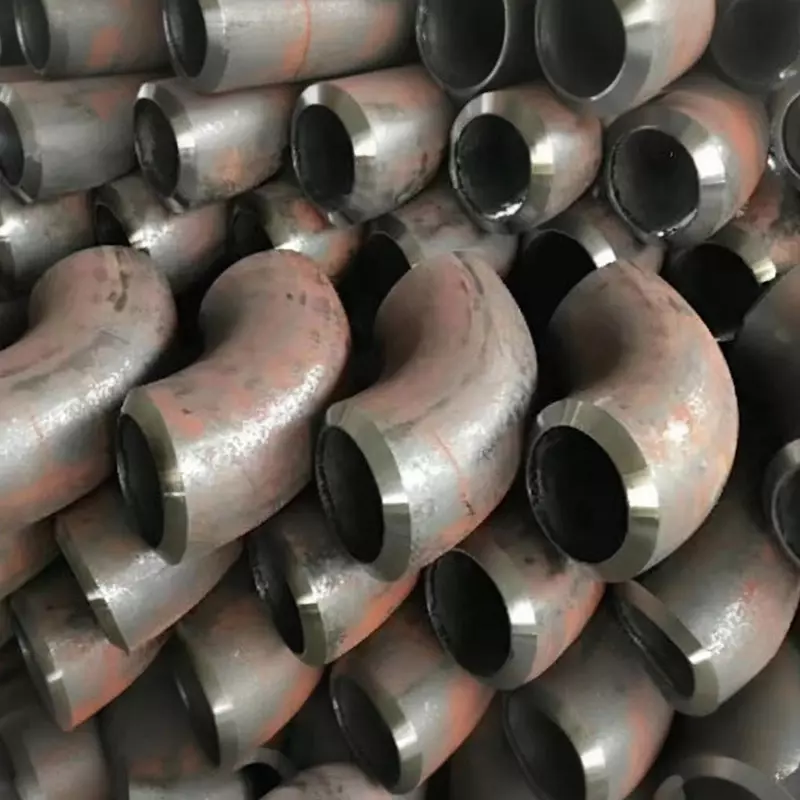

Thick-walled elbow 219*23.01 SCH160

MOQ: 100 Pieces

Delivery time: 15 Day

Product Details

1. Elbow: Long radius 90 degrees, 45 degrees,180 degrees; Short radii: 90 degrees, 45 degrees,180 degrees

It can be made according to the drawings provided by the customer.

2. Scope

Seamless pipe fittings: 18-1020

Welded pipe fittings: 2 inches -74 inches

3. Thickness grade

SCH10,SCH20,SCH30,SCH40,STD,SCH60,SCH80,XS,SCH100,SCH120,

SCH140,SCH160,XXS. SGP, DIN

4. Materials

45 #, 10 #, 20 #, Q345B, 12 cr1mov 15 crmo, Cr5MO, L245, L360, L415, L450, A234 WPB, C, A420 WPL6, WPL3, WPL8, WPL9; A234 WP1, WP265GH ,WP12. WP5, WP9, WP91,WP911, A403 WP304 ,WP304L, A403 WP316, WP316L; A420 WP3, WP6; A860 WPHY 42, WPHY 52, WPHY 60, WPHY 65, WPHY 70; St37.0 st35.8; SUS304, SUS304L,SUS316,SUS316L.

5. Terminal processing

Chamfering, flat end, or as per customer requirements.

6. Surface treatment and packaging

Sandblasting, black paint or transparent paint, wooden cases or pallets.

Explanation:

Nominal diameter		Outer diameter		Center-to-end face dimensions			Center-to-center dimensions		Back to end face dimensions
				45°	90° elbow		180° elbow		180° elbow
				elbow	90° elbow		180° elbow		180° elbow
British system	Metric system	A Series	B Series	Long radius	Long radius	Short radius	Long radius	Short radius	Long radius	Short radius
1/2	15	21.3	18	16	38	-	76	-	48	-
3/4	20	26.9	25	16	38	-	76	-	51	-
1	25	33.7	32	16	38	25	76	51	56	41
1 1/4	32	42.4	38	20	48	32	95	64	70	52
1 1/2	40	48.3	45	24	57	38	114	76	83	62
2	50	60.3	57	32	76	51	152	102	106	81
2 1/2	65	76.1(73)	76	40	95	61	191	127	132	100
3	80	88.9	88	47	114	76	229	152	159	121
3 1/2	90	101.6	-	55	133	89	267	178	184	140
4	100	114.3	108	63	152	102	305	203	210	159
5	125	139.7	133	79	190	127	381	254	262	197
6	150	168.3	159	95	229	152	457	305	313	273
8	200	219.1	219	126	305	203	610	406	414	313
10	250	273	273	158	381	254	762	508	518	391
12	300	323.9	325	189	457	305	914	610	619	467
14	350	355.6	377	221	533	356	1067	711	711	533
16	400	406.4	426	253	610	406	1219	813	813	610
18	450	457	478	284	686	457	1372	914	914	686
20	500	508	529	316	762	508	1524	1016	1016	762
24	600	610	630	379	914	610	-	-	-	-
28	700	711	720	442	1067	711	-	-	-	-
32	800	813	820	505	1219	813	-	-	-	-
36	900	914	920	568	1372	914	-	-	-	-
40	1000	1016	1020	631	1524	1016	-	-	-	-
44	1100	1118	1120	694	1676	1118	-	-	-	-
48	1200	1219	1220	758	1829	1219	-	-	-	-
52	1300	1320.8	1320	825	1981	1320	-	-	-	-
56	1400	1422.4	1420	888	2134	1420	-	-	-	-
