Product Name:Carbon Steel Elbow Connection:Butt Welding
Shape:Round Material:Carbon Steel
Degree:180 Standard:ASME/GB/EN/JIS/IS
Size:1/2-72inch Wall Thickness:Sch10-sch160

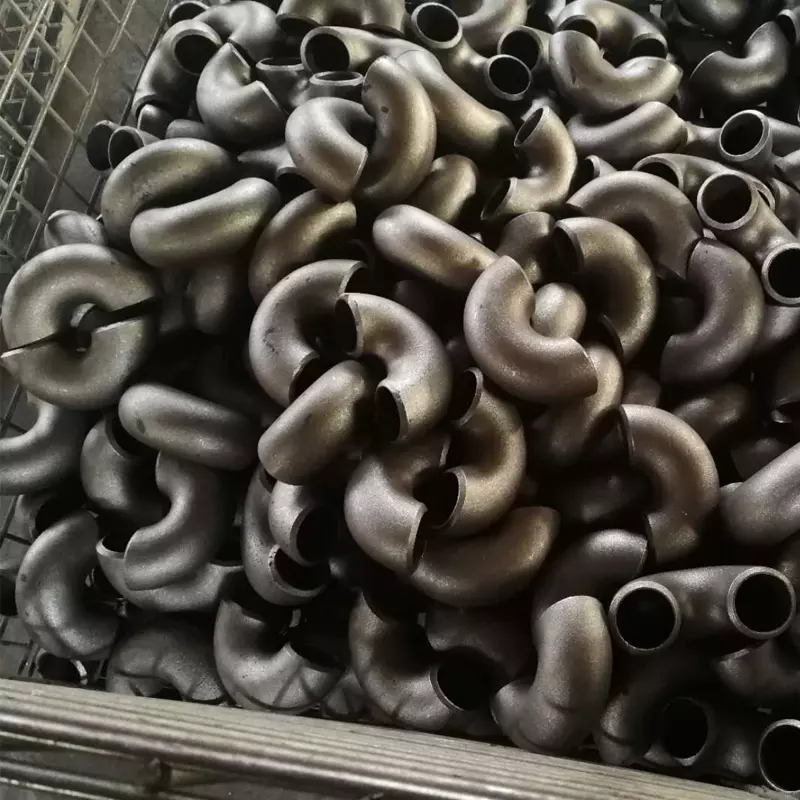

Seamless Carbon Steel Tube Elbows , Butt Weld Steel 90 Degree Elbow
Description:
1. Elbow: Short Radius ,180 Deg
Our Butt Weld Pipe Fittings can supply as clients draft drawing.
2. Size Range
Seamless Fittings : 1/2inch to 24 inch
Weld Fittings: 2 inch to 72 inch
3. Wall Thickness
SCH10,SCH20,SCH30,SCH40,STD,SCH60,SCH80,XS,SCH100,SCH120,
SCH140,SCH160,XXS. SGP, DIN
4. Material
A234 WPB , C, A420 WPL6, WPL3,WPL8,WPL9; A234 WP1, WP265GH ,WP12. WP5, WP9, WP91,WP911, A403 WP304 ,WP304L, A403 WP316, WP316L; A420 WP3, WP6; A860 WPHY 42, WPHY 52, WPHY 60, WPHY 65, WPHY 70; st37.0,st35.8; SUS304, SUS304L,SUS316,SUS316L.
5. End Treatment
Bevel Ends , Plain Ends , or as per Clients Requirments
6. Surface Treatment and Packing
Sand Blast, Paint Black Lacquer or Transparent Oil .
Wooden Case or Wooden Pallet or as per customers' requirements.
Specifications:
nominal diameter outside diameter center to end center to center back to face
45° 90° elbow 180° elbow 180° elbow
elbow
NPS DN A series B series long redius long redius short redius long redius short redius long redius short redius
1/2 15 21.3 18 16 38 - 76 - 48 -
3/4 20 26.9 25 16 38 - 76 - 51 -
1 25 33.7 32 16 38 25 76 51 56 41
1 1/4 32 42.4 38 20 48 32 95 64 70 52
1 1/2 40 48.3 45 24 57 38 114 76 83 62
2 50 60.3 57 32 76 51 152 102 106 81
2 1/2 65 76.1(73) 76 40 95 61 191 127 132 100
3 80 88.9 88 47 114 76 229 152
Production process of elbow fittings:
Select material (we preferred baosteel, tianjin TPCO, smoke treasure, baotou steel, Chang Bao, CRC steel raw materials, such as requirements within the outer diameter is smooth, uniform wall thickness, selection of high manganese steel pipe to ensure that products beautiful) - material inspection (measurement, chemical composition inspection) - storage - material cutting (leave enough machining allowance, removing iron and burr) - intermediate frequency heater variable diameter and bending forming (mold push every 48 hours after grinding, ensure dimensional tolerance control) - heat treatment (tempering process) - end processing (37.5 + 0.25) bevel Angle - visual inspection (appearance without injury, peeling,Pockmark) - chemical composition analysis (imported hand-held spectrometer) - dimensional inspection (outer diameter, wall thickness, ovality, straightness) - mechanical performance test (squashed, flaring) - sand (fine sand in order to ensure that the surface pitting not too - spray paint (environmental protection coating equipment coating surface evenly) - printing (code printer code on a black, white, bright font) - packing (fixed wooden cases or pallet packaging, packaging tapes, plastic film outside package water-proof, dust) - product check (forklift trucks, lifting transport, light with light, neat)
