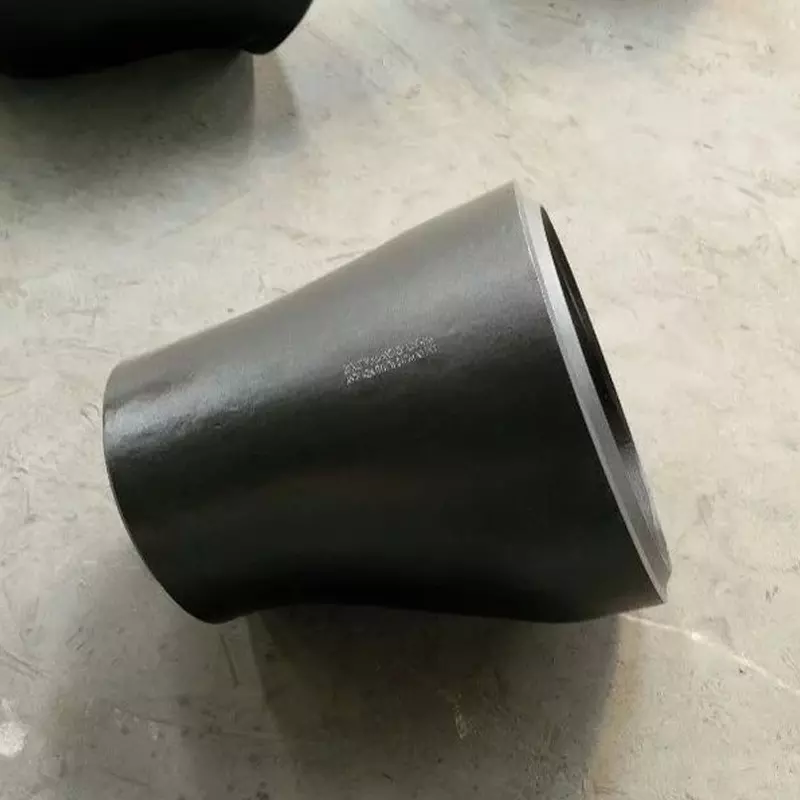

Eccentric Steel Pipe Reducer 6 Inch To 4 Inch Carbon Steel Tube Reducer
Size:
|
Seamless
|
DN15-DN600(1/2"-24")
|
|
Welded
|
DN200-DN2500(8"-100")
|
|
forged
|
DN8-DN100(1/4"-4")
|
Material:
1. Carbon steel : ASTM A105, ASTM A350 LF2, ASTM A694 F42-F52-F60-F65- F70, C22.8, C21, Rst37.2, S235JRG2, P355NH, SS400
2. Stainless steel flange: ASTM A 182 F304-304L-304H, ASTM A182 F321-321H, ASTM A182 F347-347H, ASTM A182 F316-316L-316H
3. Alloy steel : ASTM A182 F1--F5- F9-F11, F12, F22, F51, 16Mo3, 1Cr5Mo, 15CrMo, 42CrMo, 12Cr1MoV, TStE355,4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo530CrMo, 9Cr2W, 9Cr2Mo, 9Cr3Mo, 60CrMoV, CK45, 5CrMnMo, 40Cr, 20Cr2Ni4, 5CrNiMo, 15CrNiMo, 20CrNiMo, 35CrMo, 40CrNiMo
4. Duplex Stainless Steel: ASTM A182 F44, F45, F51, F53, F55, F60, F61
5. Nickel Alloy: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)
6. Claded materials: ASTM B898, B263, B264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1.
Standard:
ASME, MSS, EN, DIN, ISO, JIS, GB, SH, HG, JB, GD
Type:
Butt-welding pipe Fitting (Elbow, Tee, Reducer, Cross, Cap , Stub Ends)
Forged Pipe Fitting (Elbow, Tee, Cross ,Union, Coupling, Outlet, Boss, Bushing, Plug, Nipple)
Finish:
Transparent oil, rust-proof oil, hot galvanizing
Connection:
Butt Weld & Socket Weld & Thread
Heat treatment
Hot-formed WPB, WPC, and WPR fittings upon which the final forming operation is completed at a temperature above 1150°F [620°C] and below 1800°F [980°C] need not be heat treated provided they are cooled in still air.
Application:
Low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform.
Standard Marking:
Each fitting shall be permanently marked to show the following:
(a) manufacturer’s name or trademark
(b) material identification, either the ASTM or ASME grade designation 2
(c) schedule number 1 or nominal wall thickness in mm
(d) size — the nominal pipe size (NPS) identification number related to the end connections shall be used
(e) compliance — see para. 4.4 for standard and spe-cial fitting marking A manufacturer may supplement these mandatory markings with others, including a DN size designation, but confusion with the required marking shall be avoided.
Materials:
The material in standard A234 for fittings shall consist of killed steel, forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added and shall conform to the chemical requirements of Table 1. Unless otherwise speci-fied for carbon steel plates, the steel may be made to either coarse grain or fine grain practice. Grade WP9 shall be made to fine grain practice
| NPS |
OD |
surface to surface |
NPS |
OD |
surface to surface |
| larger end |
smaller end |
larger end |
smaller end |
| 3/4"*1/2" |
1.05 |
0.84 |
1.50 |
20"*18" |
20.00 |
18.00 |
20.00 |
| 3/4"*3/8" |
1.05 |
0.68 |
1.50 |
20"*16" |
20.00 |
16.00 |
20.00 |
| 1"*3/4" |
1.32 |
1.05 |
2.00 |
20"*14" |
20.00 |
14.00 |
20.00 |
| 1"*1/2" |
1.32 |
0.84 |
2.00 |
20"*12" |
20.00 |
12.00 |
20.00 |
| 1 1/4"*1" |
1.66 |
1.32 |
2.00 |
22"*20" |
22.00 |
20.00 |
20.00 |
| 1 1/4"*3/4" |
1.66 |
1.05 |
2.00 |
22"*18" |
22.00 |
18.00 |
20.00 |
| 1 1/4"*1/2" |
1.66 |
0.84 |
2.00 |
22"*16" |
22.00 |
16.00 |
20.00 |
| 1 1/2"*1 1/4" |
1.90 |
1.66 |
2.50 |
22"*14" |
22.00 |
14.00 |
20.00 |
| 1 1/2"*1" |
1.90 |
1.32 |
2.50 |
24"*22" |
24.00 |
22.00 |
20.00 |
| 1 1/2"*3/4" |
1.90 |
1.05 |
2.50 |
24"*20" |
24.00 |
20.00 |
20.00 |
| 1 1/2"*1/2" |
1.90 |
0.84 |
2.50 |
24"*18" |
24.00 |
18.00 |
20.00 |
| 2"*1 1/2" |
2.38 |
1.90 |
3.00 |
24"*16" |
24.00 |
16.00 |
20.00 |
| 2"*1 1/4" |
2.38 |
1.66 |
3.00 |
26"*24" |
26.00 |
24.00 |
24.00 |
| 2"*1" |
2.38 |
1.32 |
3.00 |
26"*22" |
26.00 |
22.00 |
24.00 |
| 2"*3/4" |
2.38 |
1.05 |
3.00 |
26"*20" |
26.00 |
20.00 |
24.00 |
| 2 1/2"*2" |
2.88 |
2.38 |
3.50 |
26"*18" |
26.00 |
18.00 |
24.00 |
| 2 1/2"*1 1/2" |
2.88 |
1.90 |
3.50 |
28"*26" |
28.00 |
26.00 |
24.00 |
| 2 1/2"*1 1/4" |
2.88 |
1.66 |
3.50 |
28"*24" |
28.00 |
24.00 |
24.00 |
| 2 1/2"*1" |
2.88 |
1.32 |
3.50 |
28"*20" |
28.00 |
20.00 |
24.00 |
| 3"*2 1/2" |
3.50 |
2.88 |
3.50 |
28"*18" |
28.00 |
18.00 |
24.00 |
| 3"*2" |
3.50 |
2.38 |
3.50 |
30"*28" |
30.00 |
28.00 |
24.00 |
| 3"*1 1/2" |
3.50 |
1.90 |
3.50 |
30"*26" |
30.00 |
26.00 |
24.00 |
| 3"*1 1/4" |
3.50 |
1.66 |
3.50 |
30"*24" |
30.00 |
24.00 |
24.00 |
| 3 1/2"*3" |
4.00 |
3.50 |
4.00 |
30"*20" |
30.00 |
20.00 |
24.00 |
| 3 1/2"*2 1/2" |
4.00 |
2.88 |
4.00 |
32"*30" |
32.00 |
30.00 |
24.00 |
| 3 1/2"*2" |
4.00 |
2.38 |
4.00 |
32"*28" |
32.00 |
28.00 |
24.00 |
| 3 1/2"*1 1/2" |
4.00 |
1.90 |
4.00 |
32"*26" |
32.00 |
26.00 |
24.00 |
| 3 1/2"*1 1/4" |
4.00 |
1.66 |
4.00 |
32"*24" |
32.00 |
24.00 |
24.00 |
| 4"*3 1/2" |
4.50 |
4.00 |
4.00 |
34"*32" |
34.00 |
32.00 |
24.00 |
| 4"*3" |
4.50 |
3.50 |
4.00 |
34"*30" |
34.00 |
30.00 |
24.00 |
| 4"*2 1/2" |
4.50 |
2.88 |
4.00 |
34"*26" |
34.00 |
26.00 |
24.00 |
| 4"*2" |
4.50 |
2.38 |
4.00 |
34"*24" |
34.00 |
24.00 |
24.00 |
| 4"*1 1/2" |
4.50 |
1.90 |
4.00 |
36"*34" |
36.00 |
34.00 |
24.00 |
| 5"*4" |
5.56 |
4.50 |
5.00 |
36"*32" |
36.00 |
32.00 |
24.00 |
| 5"*3 1/2" |
5.56 |
4.00 |
5.00 |
36"*30" |
36.00 |
30.00 |
24.00 |
| 5"*3" |
5.56 |
3.50 |
5.00 |
36"*26" |
36.00 |
26.00 |
24.00 |
| 5"*2 1/2" |
5.56 |
2.88 |
5.00 |
36"*24" |
36.00 |
24.00 |
24.00 |
| 5"*2" |
5.56 |
2.38 |
5.00 |
38"*36" |
38.00 |
36.00 |
24.00 |
