Polyurethane insulated pipe
Product description:
1. Applicable to pipe network systems with medium temperature not higher than 120℃, accidental peak temperature not higher than 140℃ and working pressure not greater than 2.5Mpa.The polyurethane insulated pipe can work continuously at 120℃ for at least 30 years.2. The products are widely used in heat supply, cooling, oil transmission and anti-corrosion, thermal insulation pipeline engineering.
Product introduction
Limited-product structure

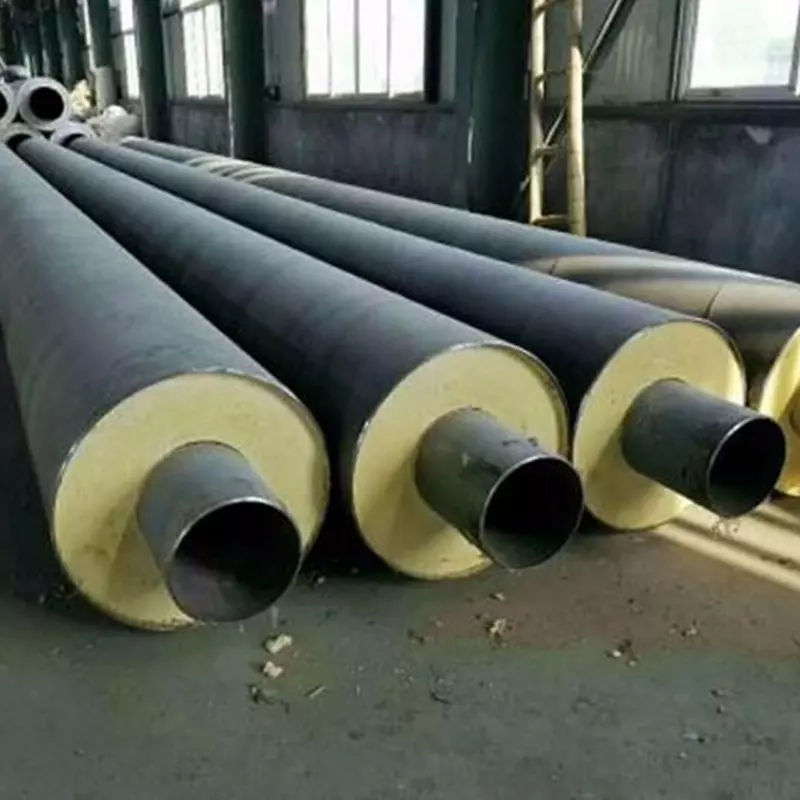

Polyurethane prefabricated buried insulation pipe is made of working steel pipe, polyurethane rigid foam plastic insulation layer and high density polyethylene outer sheath.The insulation layer has support and alarm line.As shown in figure:
Polyurethane insulated tube structure
Description of the limited-product
1. Applicable to pipe network systems with medium temperature not higher than 120℃, accidental peak temperature not higher than 140℃ and working pressure not greater than 2.5Mpa.The polyurethane insulated pipe can work continuously at 120℃ for at least 30 years.
2. The products are widely used in heat supply, cooling, oil transmission and anti-corrosion, thermal insulation pipeline engineering.
Uploading...
limited-capacity
7 production lines of polyurethane prefabricated directly buried thermal insulation pipe, producing dn20-dn1600mm polyurethane prefabricated directly buried thermal insulation pipe 3600km annually;
Limited-product specifications
The supply length of straight pipe is 6-12 meters
Nominal diameter
Steel pipe outside diameter * wall thickness
Outer sheath outer diameter * wall thickness
Insulation thickness
20
25 * 2.8
90 * 2.2
30.3
25
32 * 2.8
90 * 2.2
26.8
32
42 * 2.8
110 * 2.5
31.5
40
48 * 2.8
110 * 2.5
28.5
50
60 * 3
140 * 3
37
65
76 * 3
140 * 3
29
80
89 * 4
160 * 3
32.5
100
114 * 4
200 * 3.2
39.8
125
140 * 4.5
225 * 3.5
39
150
159 * 4.5
250 * 3.9
41.6
150
168 * 5
250 * 3.9
37.1
200
219 * 6
315 * 4.9
43.1
250
273 * 6
365 * 5.6
40.4
300
325 * 7
420 * 7
40.5
350
377 * 7
500 * 7.8
53.7
400
426 * 7
550 * 8.8
53.2
450
478 * 7
578 * 8.8
41.2
500
529 * 7
655 * 9.8
53.2
600
630 * 8
760 * 11.1
53.9
700
720 * 8
850 * 12
53
800
820 * 9
955 * 13
54.5
900
920 * 10
1054 * 14
53
1000
1020 * 10
1155 * 14
53.5
1200
1220 * 12
1370 * 15
60
1400
1420 * 16
1680 * 25
105
The advantages of limited-product
1, good insulation performance, low heat loss, heat loss is only 25% of the traditional pipe, long-term operation can save a lot of energy, significantly reduce the energy cost;
2. With strong waterproof and corrosion resistance and high mechanical strength, it can meet the thermal stress requirements of direct buried laying without compensation;
3, more than 30 years of service life, the correct installation and use of pipe network maintenance costs are very low;
4. There is no need to attach pipe trench, which can be directly buried underground, convenient and quick construction, and low comprehensive cost;
5. An alarm system can be set up to automatically detect the leakage fault of the pipe network and give an automatic alarm with high safety and stability;
6. The products are buried underground, which is conducive to environmental beautification and town planning.
