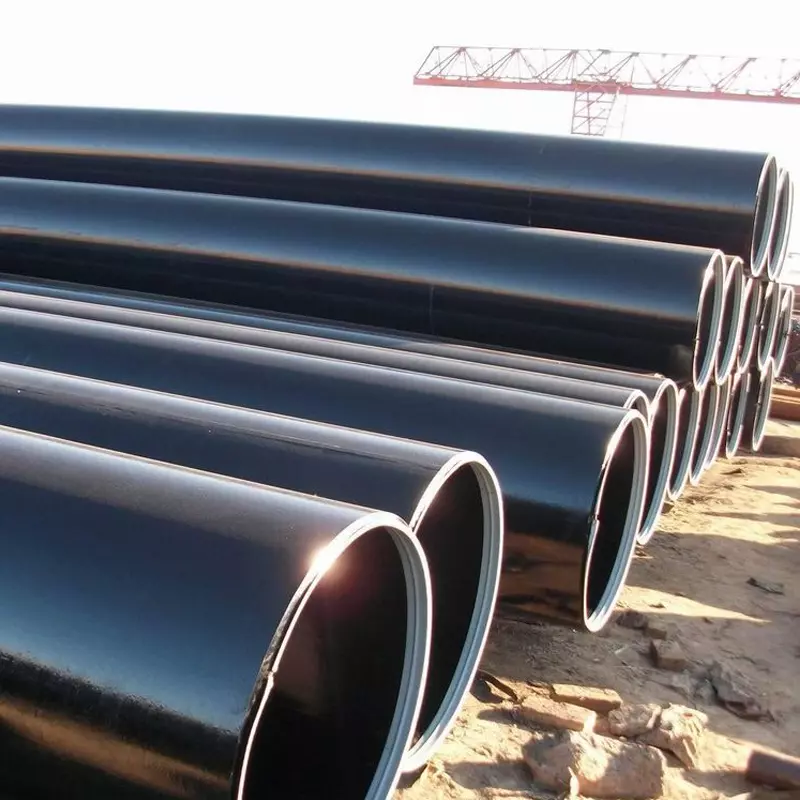

Seamless API 5L X52 Pipe For High Pressure Boiler , API 5L Steel Pipe

MOQ: 100 Meter

Delivery time: 15 Day

Product Details

Product Details:

Place of Origin:	China
Brand Name:	Gangyu Pipeline
Certification:	API / BV / SGS / ISO
Model Number:	22''

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	strapped in bundles
Delivery Time:	10 working days after received your payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50,000pcs per month

Product Name:	Seamless API Pipe	Ends Type:	Beveled Ends
Shape:	Round	Material:	X52
Techniques:	Seamless	Wall Thickness:	SCH40
Standard:	ASME/GB/EN/JIS/IS	Size:	22''

Seamless API 5L X52 Pipe For High Pressure Boiler , API 5L Steel Pipe

1. Standard:API,ASTM

2. OD:21.3mm-1220mm,WT:3.73-50mm

3. Competitive price,good quality, Standard export package

4. Steel Grade: API 5L: GR B, X42, X46, X56, X60, X65, X70, X80

Out Diameter: 1/2 - 48 inch Wall Thickness: 3.73- 50mm

Usage: Applicable to the general structure, mechanical structure, Low, medium and high pressure boiler, transportation for gas, water, oil and natural gas, tubes for heat exchanger and chemical fertilizer equipments, for hydraulic pillar service etc.
Standard:

Carbon steel pipe: ASTM A106,A53, ASTM A179, ASTM A192,DIN17175 ST45.8 ST35.82.

Alloy steel pipe: ASTM A335,ASTM A2133.

Stainless steel pipe: ASTM A312,ASTM A2134.

Line pipe and casing pipe: API5L ,API 5CT

Steel Grade: API 5L: GR B, X42, X46, X56, X60, X65, X70ASTM A53/A106: GR A, GR B, GR CASME SA106: GR.A, GR.B, GR.CASME SA192: SA192ASME SA209M: T1, T1aASME SA210: GR.A1, GR.CASME SA213: T2, T5, T9, T11, T12, T22ASME SA335: P2, P5, P9, P11, P12, P22, P91 DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44

Heat treatment: Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered.

Delivery Condition: BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C)

Advantage description:
Carbon steel butt welding, seamless elbow, flange, tee, cross, pipe cap, seamless steel pipe, ERW pipe, spiral pipe, etc. Products are manufactured in accordance with GB 12459-2008, ASME / ANSI b16.9, din, jis, iso, etc. Products can also be manufactured under non-standard according to customers' request.

Wall Thicknesses Schedule
ANSI/ASME B36.10M,B36.19M

Norminal Pipe Size DN(in.)	Outside Diameter D	T Norminal Wall Thickness
Norminal Pipe Size DN(in.)	Outside Diameter D	sch5s	sch10s	sch10	sch20	sch30	sch40s	STD	sch40	sch60	sch80s	XS
1/8	10.3	---	1.24	---	---	---	1.73	1.73	1.73	---	2.41	2.41
1/4	13.7	---	1.65	---	---	---	2.24	2.24	2.24	---	3.02	3.02
3/8	17.1	---	1.65	---	---	---	2.31	2.31	2.31	---	3.2	3.2
1/2	21.3	1.65	2.11	---	---	---	2.77	2.77	2.77	---	3.73	3.73
3/4	26.7	1.65	2.11	---	---	---	2.87	2.87	2.87	---	3.91	3.91
1	33.4	1.65	2.77	---	---	---	3.38	3.38	3.38	---	4.55	4.55
1¼	42.2	1.65	2.77	---	---	---	3.56	3.56	3.56	---	4.85	4.85
1½	48.3	1.65	2.77	---	---	---	3.68	3.68	3.68	---	5.08	5.08
2	60.3	1.65	2.77	---	---	---	3.91	3.91	3.91	---	5.54	5.54
2½	73	2.11	3.05	---	---	---	5.16	5.16	5.16	---	7.01	7.01
3	88.9	2.11	3.05	---	---	---	5.49	5.49	5.49	---	7.62	7.62
3½	101.6	2.11	3.05	---	---	---	5.74	5.74	5.74	---	8.08	8.08
4	114.3	2.11	3.05	---	---	---	6.02	6.02	6.02	---	8.56	8.56
5	141.3	2.77	3.4	---	---	---	6.55	6.55	6.55	---	9.53	9.53
6	168.3	2.77	3.4	---	---	---	7.11	7.11	7.11	---	10.97	10.97
8	219.1	2.77	3.76	---	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7
10	273.1	3.4	4.19	---	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7
12	323.9	3.96	4.57	---	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7
14	355.6	3.96	4.78	6.35	7.92	9.53	---	9.53	11.13	15.09	---	12.7
16	406.4	4.19	4.78	6.35	7.92	9.53	---	9.53	12.7	16.66	---	12.7
18	457.2	4.19	4.78	6.35	7.92	11.13	---	9.53	14.27	19.05	---	12.7
20	508	4.78	5.54	6.35	9.53	12.7	---	9.53	15.09	20.62	---	12.7
22	558.8	4.78	5.54	6.35	9.53	12.7	---	9.53	---	22.23	---	12.7
24	609.6	5.54	6.35	6.35	9.53	14.27	---	9.53	17.48	24.61	---	12.7
26	660.4	---	---	7.92	12.7	---	---	9.53	---	---	---	12.7
28	711.2	---	---	7.92	12.7	15.88	---	9.53	---	---	---	12.7
30	762	6.35	7.92	7.92	12.7	15.88	---	9.53	---	---	---	12.7
32	812.8	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
34	863.6	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
36	914.4	---	---	7.92	12.7	15.88	19.05	9.53	19.05	---	---	12.7
38	965.2	---	---	---	---	---	---	9.53	---	---	---	12.7
40	1016	---	---	---	---	---	---	9.53	---	---	---	12.7
42	1066.8	---	---	---	---	---	---	9.53	---	---	---	12.7
44	1117.6	---	---	---	---	---	---	9.53	---	---	---	12.7
46	1168.4	---	---	---	---	---	---	9.53	---	---	---	12.7
48	1219.2	---	---	---	---	---	---	9.53	---	---	---	12.7
