 Product Name:Carbon Steel Elbow Connection:Butt Welding
Shape:Round Material:Carbon Steel
Degree:30, 45, 60,90, 135,180 Standard:ASME/GB/EN/JIS/IS
Size:1/2-72inch Wall Thickness:Sch10-sch160

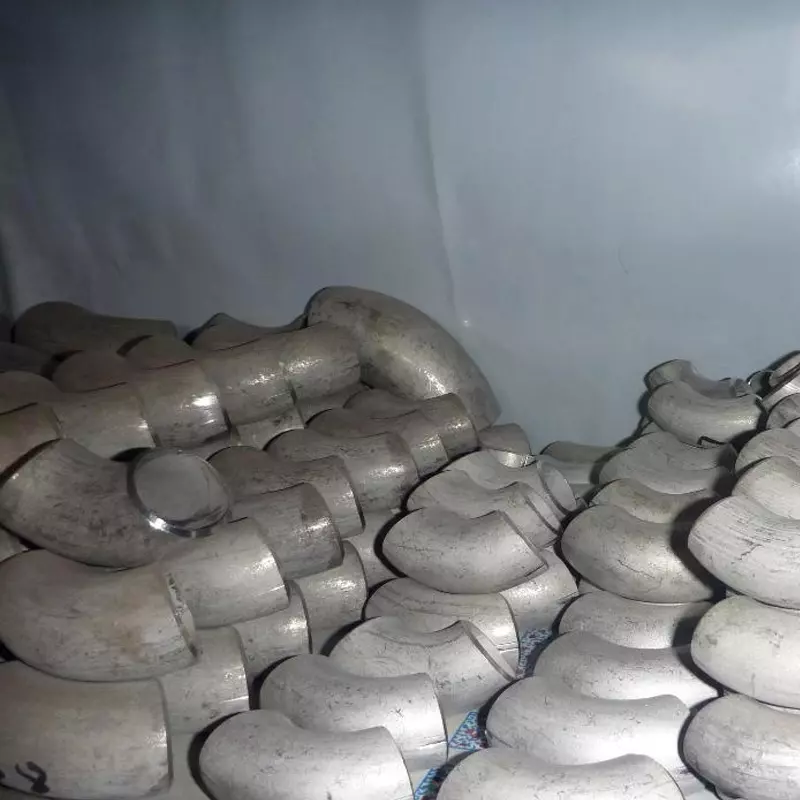

Seamless Carbon Steel Tube Elbows , Butt Weld Steel 90 Degree Elbow
Description:
1. Elbow: Long Radius 90 Deg, 45 Deg,180 Deg ; Short Radius 90 Deg, 45Deg,180 Deg
    Our Butt Weld Pipe Fittings can supply as clients draft drawing.
2. Size Range
    Seamless Fittings : 1/2inch to 24 inch
    Weld Fittings: 2 inch  to 72 inch
3. Wall Thickness
    SCH10,SCH20,SCH30,SCH40,STD,SCH60,SCH80,XS,SCH100,SCH120,
    SCH140,SCH160,XXS. SGP, DIN
4. Material
A234 WPB , C, A420 WPL6, WPL3,WPL8,WPL9; A234 WP1, WP265GH ,WP12. WP5, WP9, WP91,WP911, A403 WP304 ,WP304L, A403 WP316, WP316L; A420 WP3, WP6; A860 WPHY 42, WPHY 52, WPHY 60, WPHY 65, WPHY 70; st37.0,st35.8; SUS304, SUS304L,SUS316,SUS316L.
5. End Treatment
    Bevel Ends , Plain Ends , or as per Clients Requirments
6. Surface Treatment and Packing
    Sand Blast, Paint Black Lacquer or Transparent Oil .
    Wooden Case or Wooden Pallet or as per customers' requirements.
Specifications:
nominal diameter outside diameter center to end center to center back to face
45° 90° elbow 180° elbow 180° elbow
elbow
NPS DN A series B series long redius long redius short redius long redius short redius long redius short redius




  Last one: None

• Next one: DIN 2605 1 Stainless Steel Tube 90 Degree Elbow With

• nominal diameter		outside diameter		center to end			center to center		back to face
  				45°	90° elbow		180° elbow		180° elbow
  				elbow
  NPS	DN	A series	B series	long redius	long redius	short redius	long redius	short redius	long redius	short redius
  1/2	15	21.3	18	16	38	-	76	-	48	-
  3/4	20	26.9	25	16	38	-	76	-	51	-
  1	25	33.7	32	16	38	25	76	51	56	41
  1 1/4	32	42.4	38	20	48	32	95	64	70	52
  1 1/2	40	48.3	45	24	57	38	114	76	83	62
  2	50	60.3	57	32	76	51	152	102	106	81
  2 1/2	65	76.1(73)	76	40	95	61	191	127	132	100
  3	80	88.9	88	47	114	76	229	152	159	121
  3 1/2	90	101.6	-	55	133	89	267	178	184	140
  4	100	114.3	108	63	152	102	305	203	210	159
  5	125	139.7	133	79	190	127	381	254	262	197
  6	150	168.3	159	95	229	152	457	305	313	273
  8	200	219.1	219	126	305	203	610	406	414	313
  10	250	273	273	158	381	254	762	508	518	391
  12	300	323.9	325	189	457	305	914	610	619	467
  14	350	355.6	377	221	533	356	1067	711	711	533
  16	400	406.4	426	253	610	406	1219	813	813	610
  18	450	457	478	284	686	457	1372	914	914	686
  20	500	508	529	316	762	508	1524	1016	1016	762
  24	600	610	630	379	914	610	-	-	-	-
  28	700	711	720	442	1067	711	-	-	-	-
  32	800	813	820	505	1219	813	-	-	-	-
  36	900	914	920	568	1372	914	-	-	-	-
  40	1000	1016	1020	631	1524	1016	-	-	-	-
  44	1100	1118	1120	694	1676	1118	-	-	-	-
  48	1200	1219	1220	758	1829	1219	-	-	-	-
  52	1300	1320.8	1320	825	1981	1320	-	-	-	-
  56	1400	1422.4	1420	888	2134	1420	-	-	-	-
